SALE

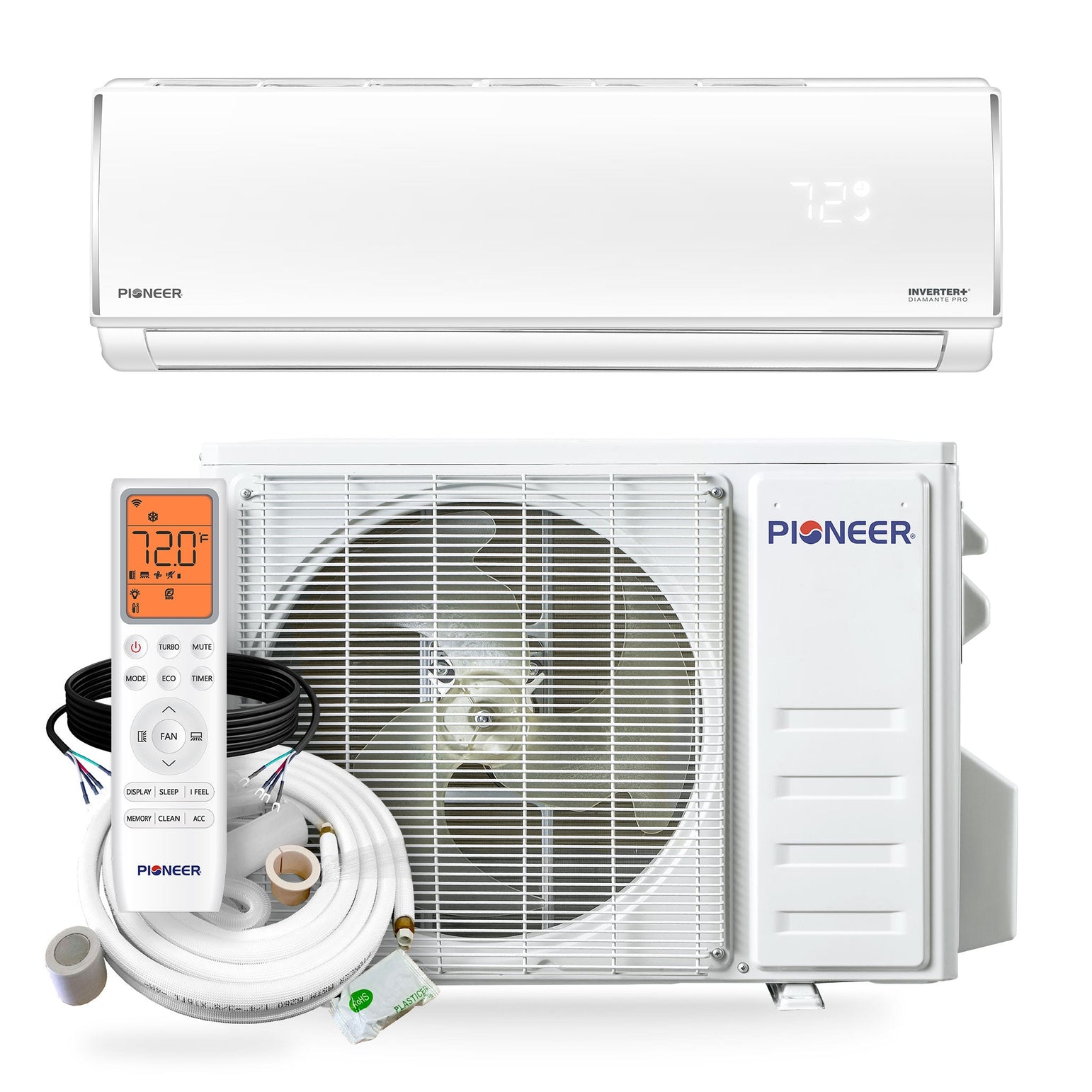

Pioneer® Diamante Pro™ 24,000 BTU 21 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit
$1,438
$2,049
Product Type: WYT-20
SKU: WYT024GLSI20RL
Weight: 188.0 lb
Guaranteed Safe Checkout
Summary
- High Efficiency Diamante Pro™ Ductless Mini Split Heat Pump System
- Cooling capacity: 24,000 BTU/H with 21 SEER2 / 11 EER2 efficiency
- Heating capacity: 24,600 BTU/H with 9.5 HSPF2 / 3.41 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall-Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Low Ambient Range Operation (As low as -4°F in Heating / As high as 122°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

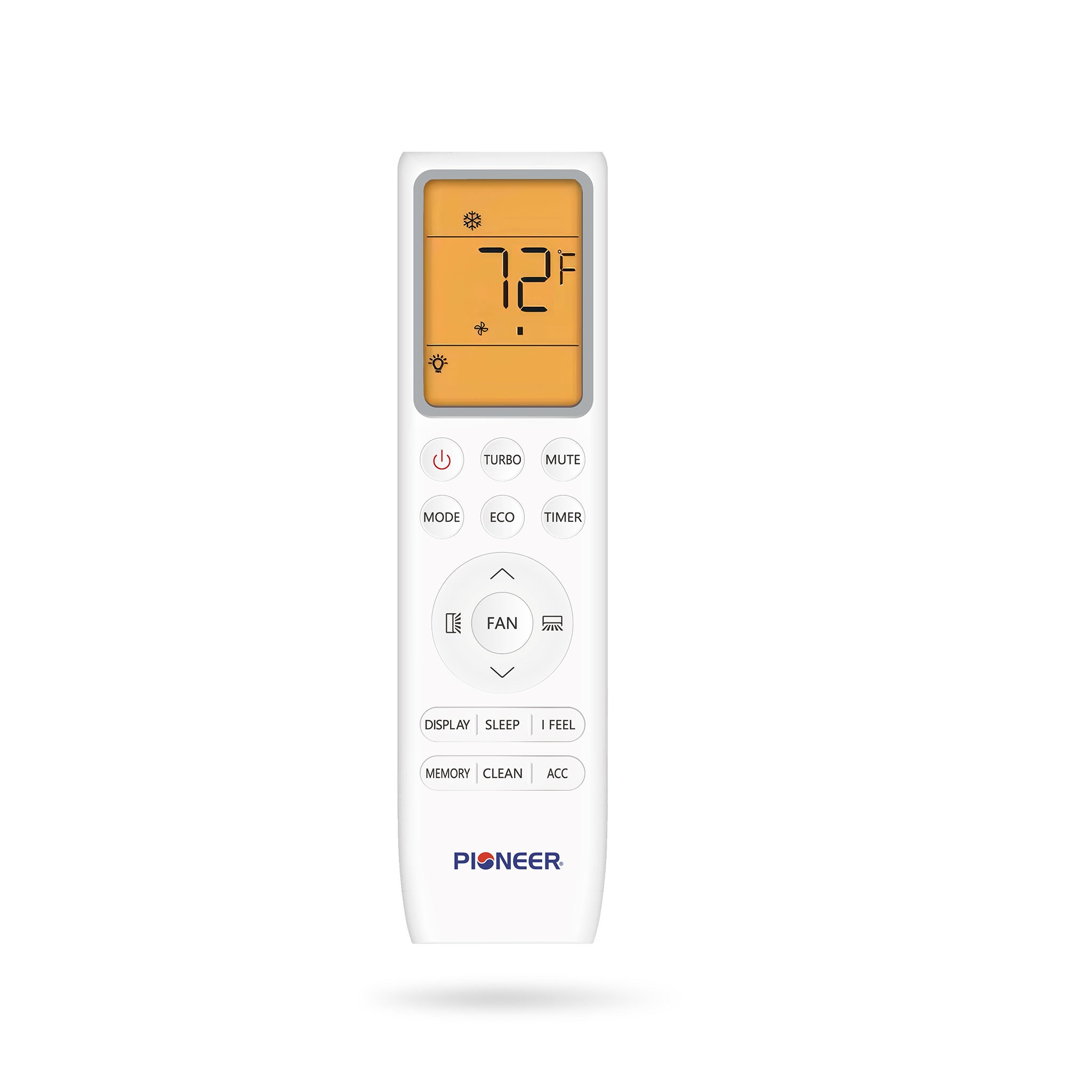

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Information & Performance
-
System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 24,000 BTU/h
- Cooling Capacity Range: 5,100 ~ 25,200 BTU/h
- Cooling SEER2: 21.0 BTU/W.h
- Cooling EER2: 11.0 BTU/W.h
- Heating Rated Capacity: 24,600 BTU/h
- Heating Capacity Range: 5,100 ~ 25,900 BTU/h
- Heating HSPF2 (Region IV): 9.5 / 8.2 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.41 / 2.1 W/W
- Refrigerant Type: R454b
- Recommended Room Size: 750~1000 sq ft
- Minimum Room Size: 51 sq ft
- Minimum Installation Height: 6 ft

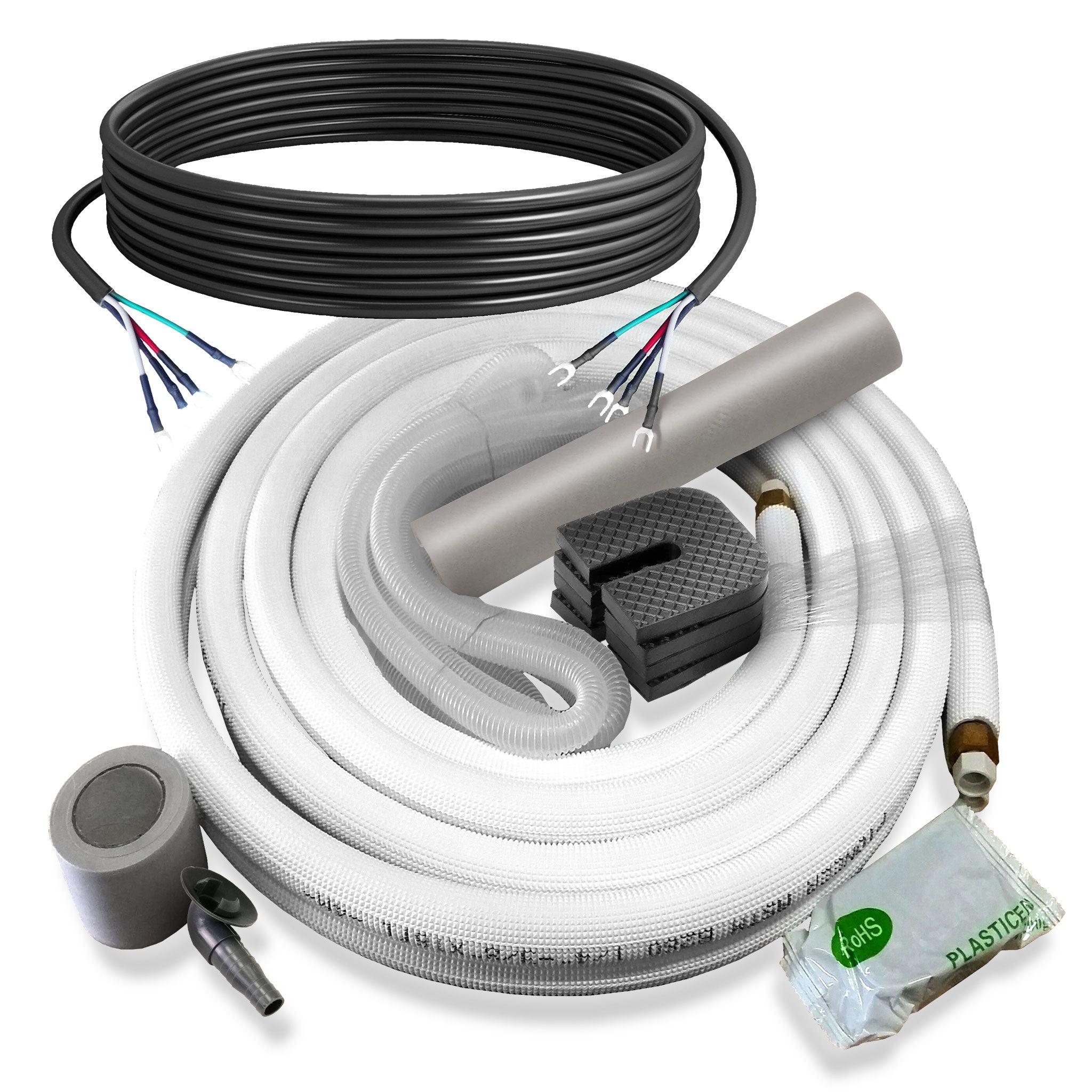

- Piping Diameter: 1/4 x 1/2"
- AHRI Reference: 217048745
-

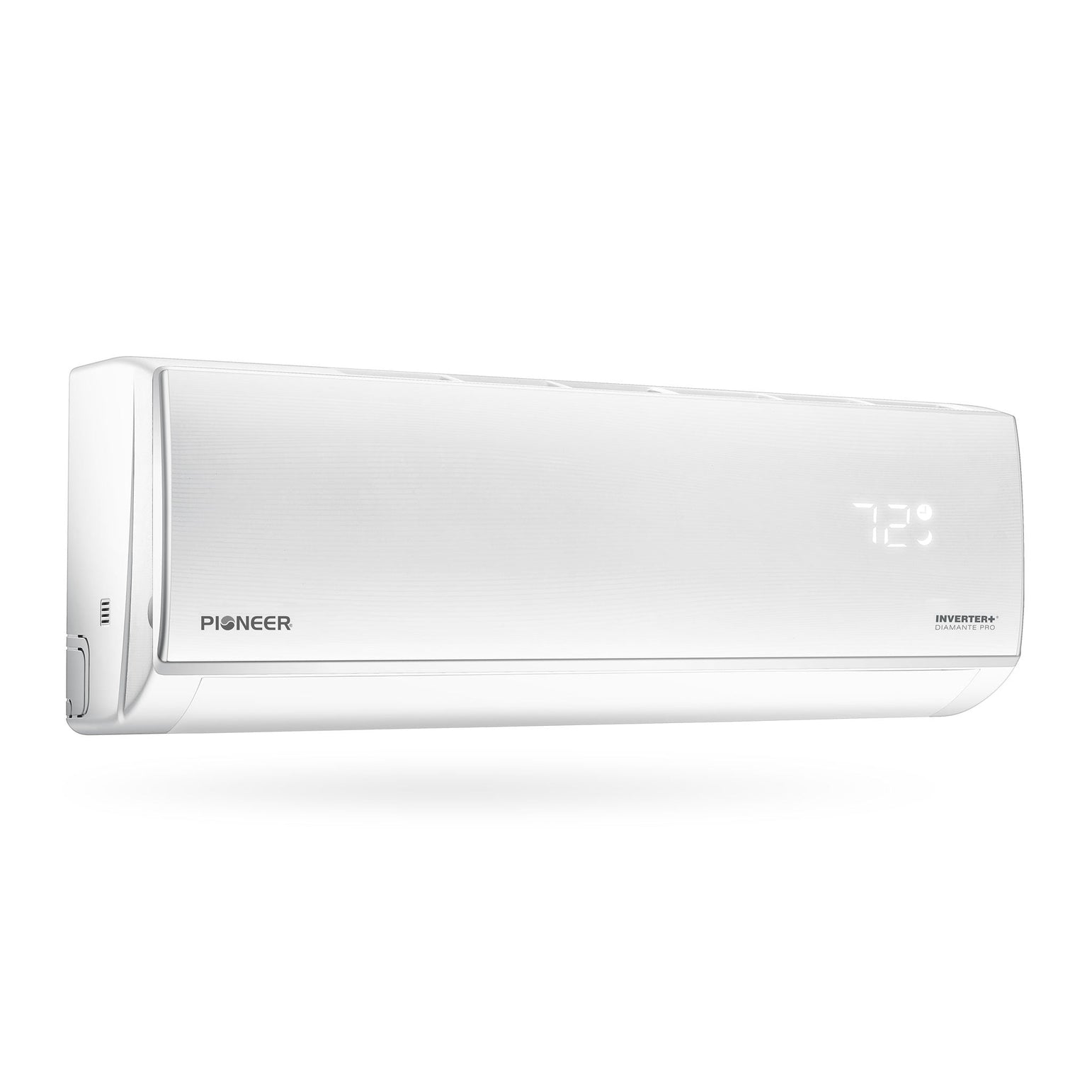

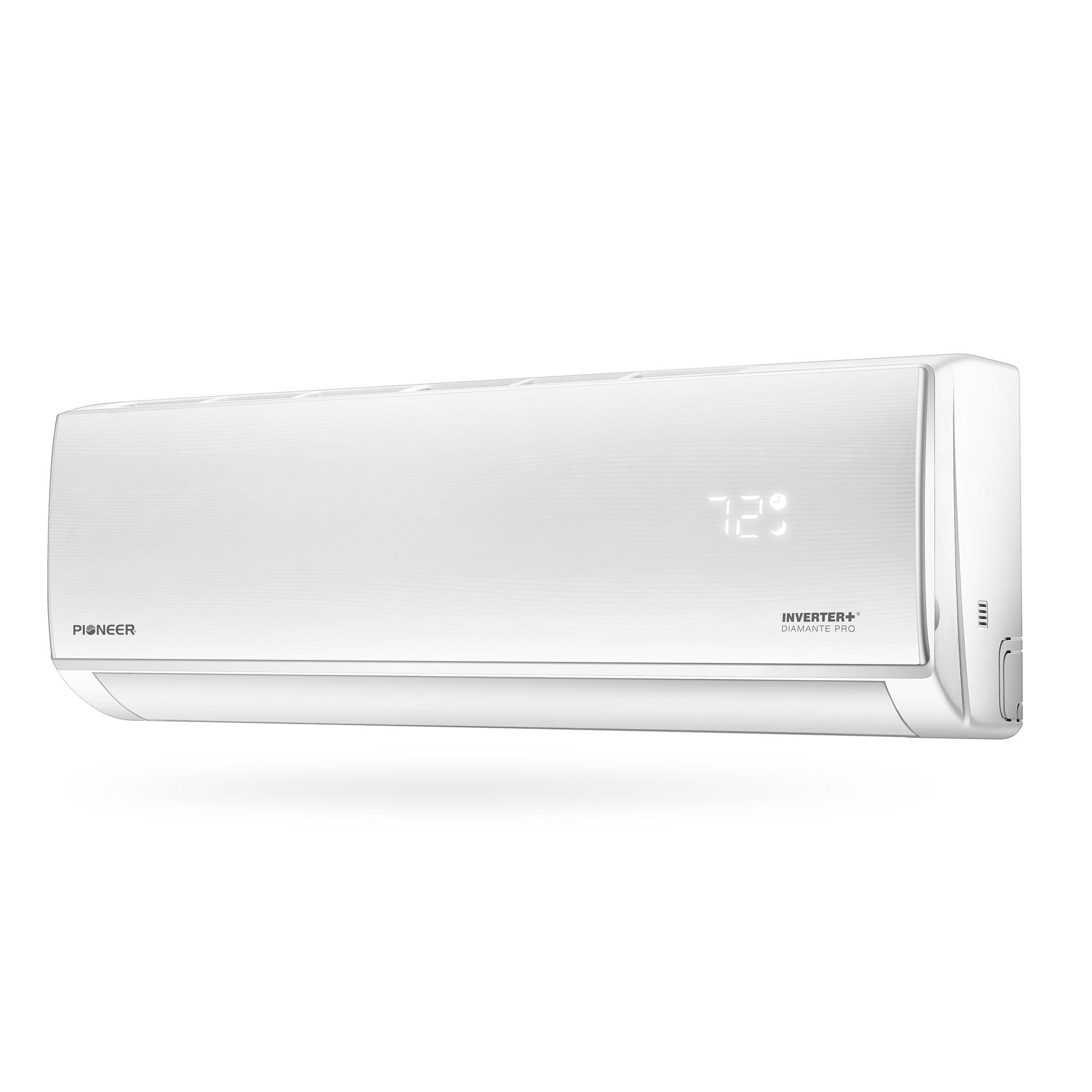

Indoor Unit
- Part Number: WT024GLSI20HLF
- Air Flow (Turbo/Hi/Med/Lo/Mute): 847 / 705 / 588 / 470 / 412 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 52 / 49 / 43 / 38 / 36 dB(A)
- Product Dimensions (WDH): 46-7/8 x 10-1/4 x 14-1/4 Inches
- Carton Dimensions (WDH): 49-5/8 x 13 x 17 Inches
- Net / Gross Weight: 36.4 / 43 lbs.
-

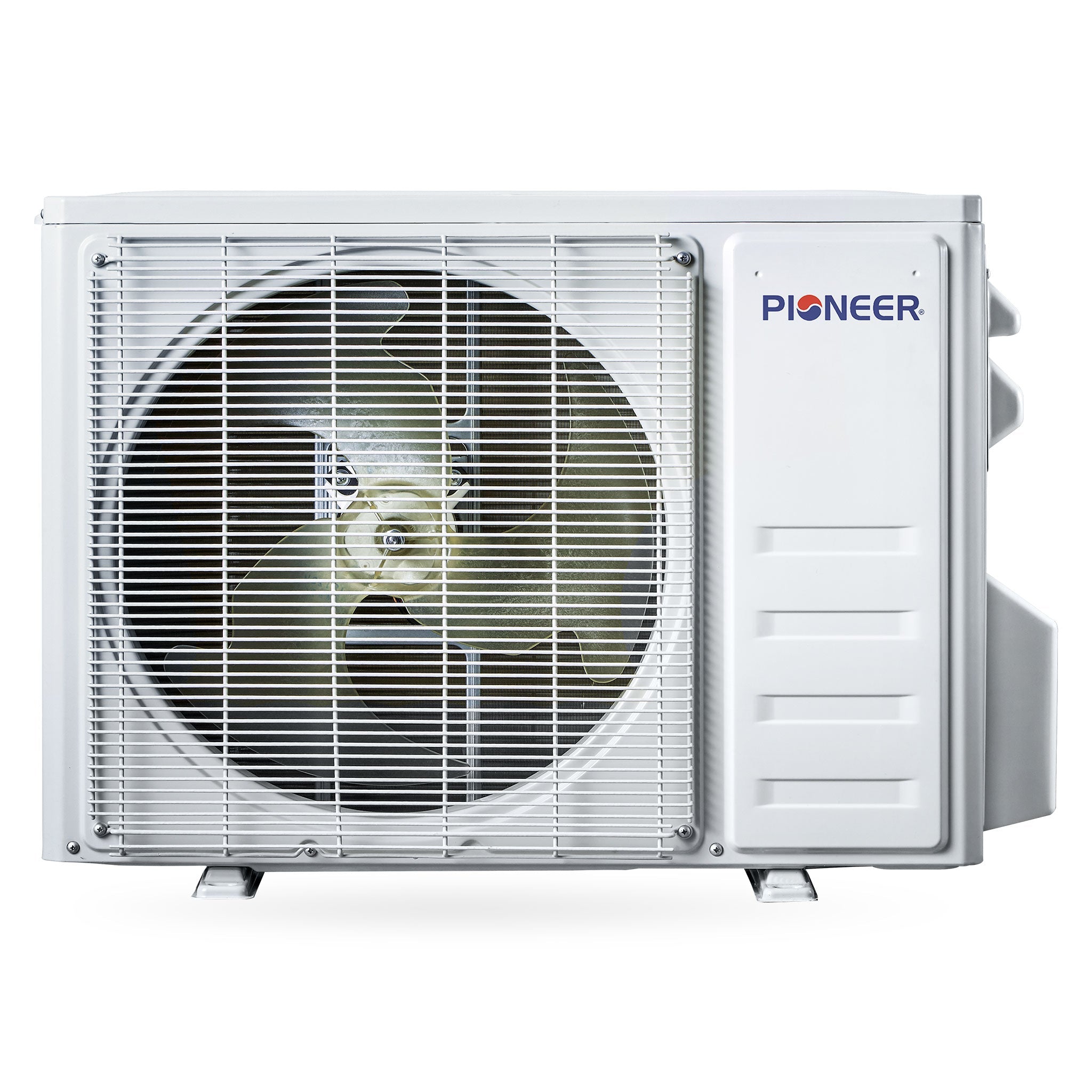

Outdoor Unit
- Part Number: YN024GLSI20RPF
- Breaker Needed: 20A (double-pole)
- Sound Level: 58 dB(A)
- Net Dimensions (WDH): 36-1/2 x 14-7/8 x 27-1/2 Inches
- Carton Dimensions (WDH): 37-3/4 x 17-1/8 x 30-1/2 Inches
- Net / Gross Weight: 88.2 / 103.6 lbs.
