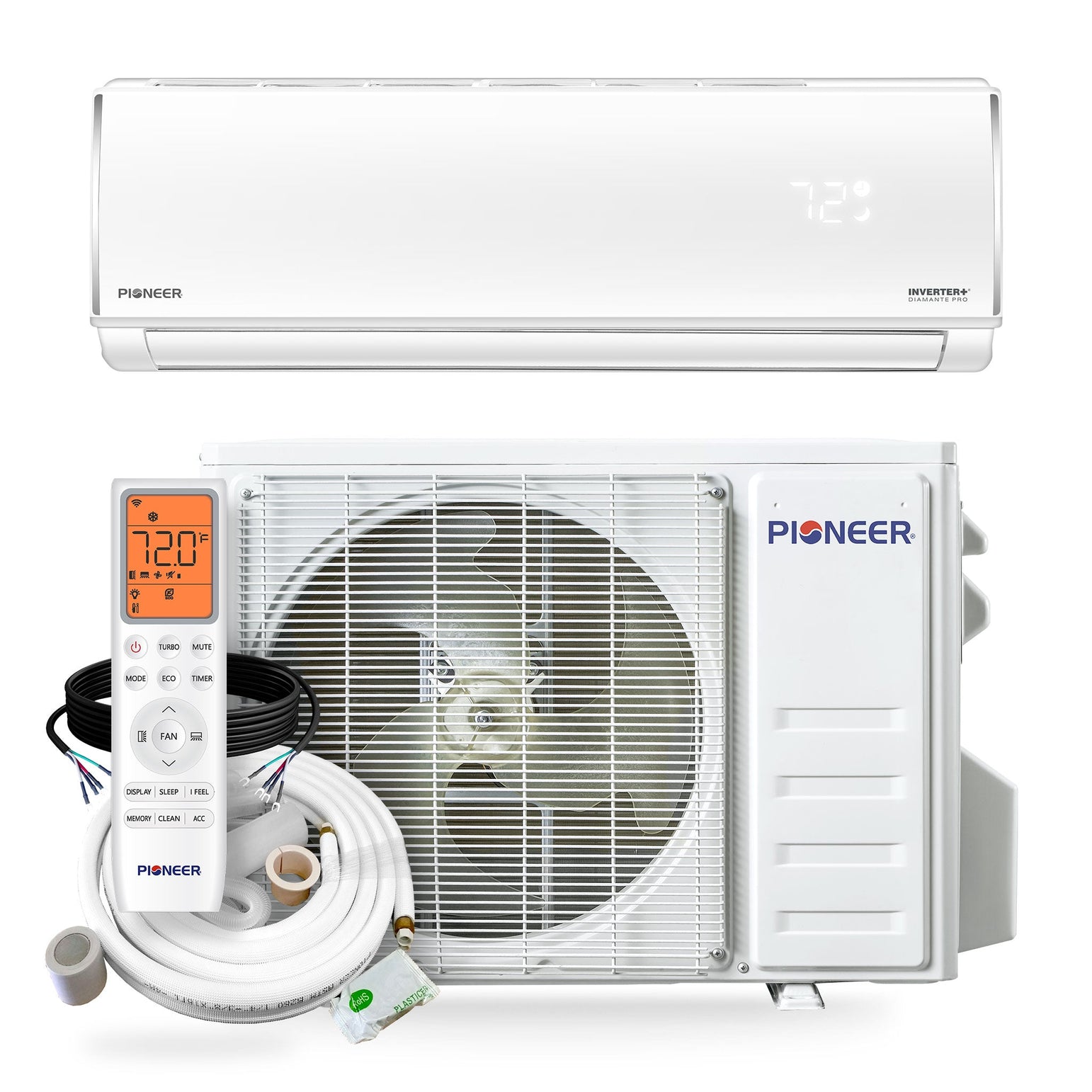

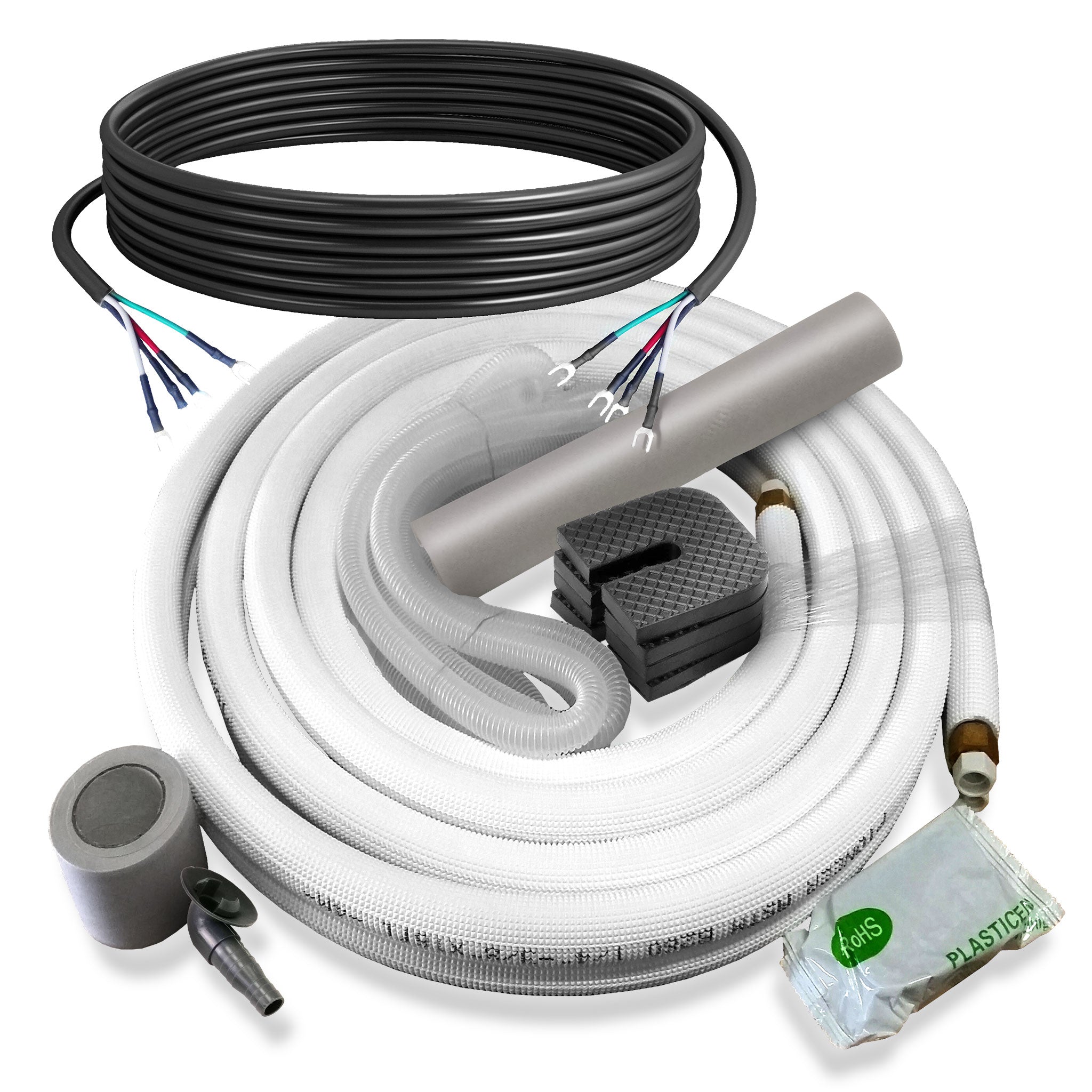

Pioneer® Diamante Pro™ 18,000 BTU 21 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit
$1,138
$1,629
Product Type: WYT-20
SKU: WYT018GLSI20RL
Weight: 157.0 lb
Guaranteed Safe Checkout
Summary
- High Efficiency Diamante Pro™ Ductless Mini Split Heat Pump System
- Cooling capacity: 18,000 BTU/H with 21 SEER2 / 11 EER2 efficiency
- Heating capacity: 19,000 BTU/H with 9.5 HSPF2 / 3.41 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall-Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Low Ambient Range Operation (As low as -4°F in Heating / As high as 122°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

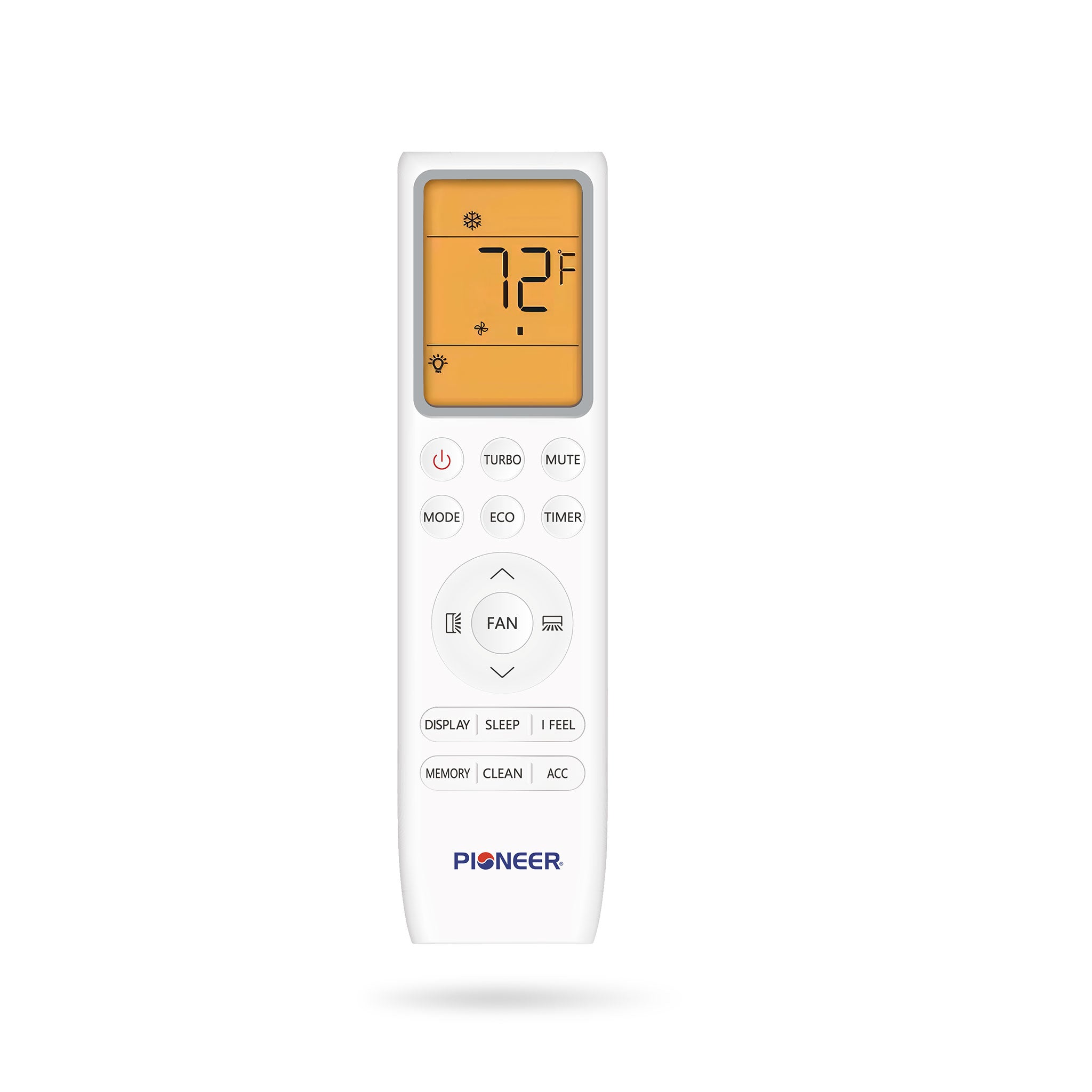

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Information & Performance
-
System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 18,000 BTU/h
- Cooling Capacity Range: 4,090 ~ 18,400 BTU/h
- Cooling SEER2: 21.0 BTU/W.h
- Cooling EER2: 11.0 BTU/W.h
- Heating Rated Capacity: 19,000 BTU/h
- Heating Capacity Range: 4,090 ~ 19,000 BTU/h
- Heating HSPF2 (Region IV): 9.5 / 8.2 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.41 / 1.8 W/W
- Refrigerant Type: R454b
- Recommended Room Size: 500~750 sq ft
- Minimum Room Size: 40 sq ft
- Minimum Installation Height: 6 ft
- Piping Diameter: 1/4 x 3/8"
- AHRI Reference: 217048744
-

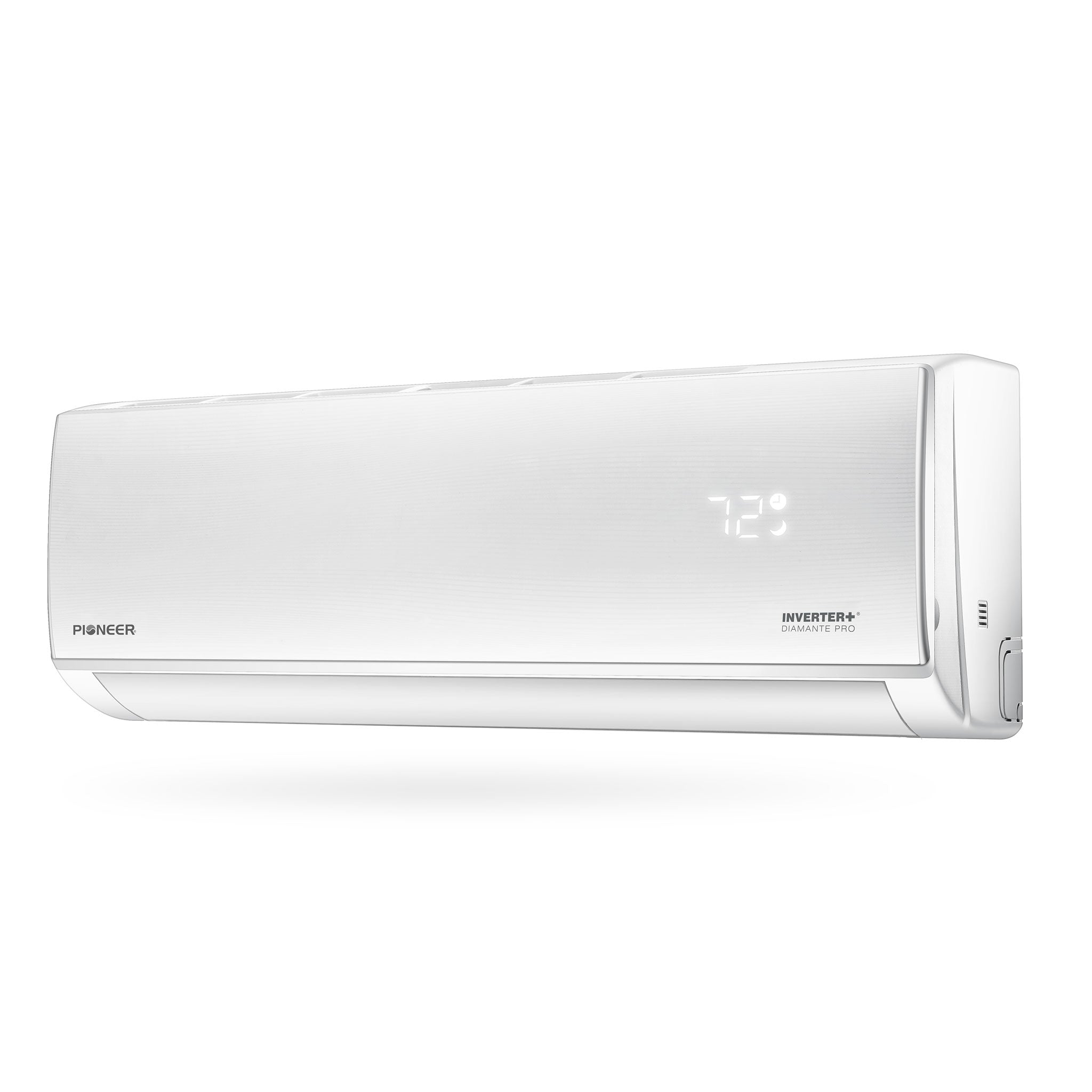

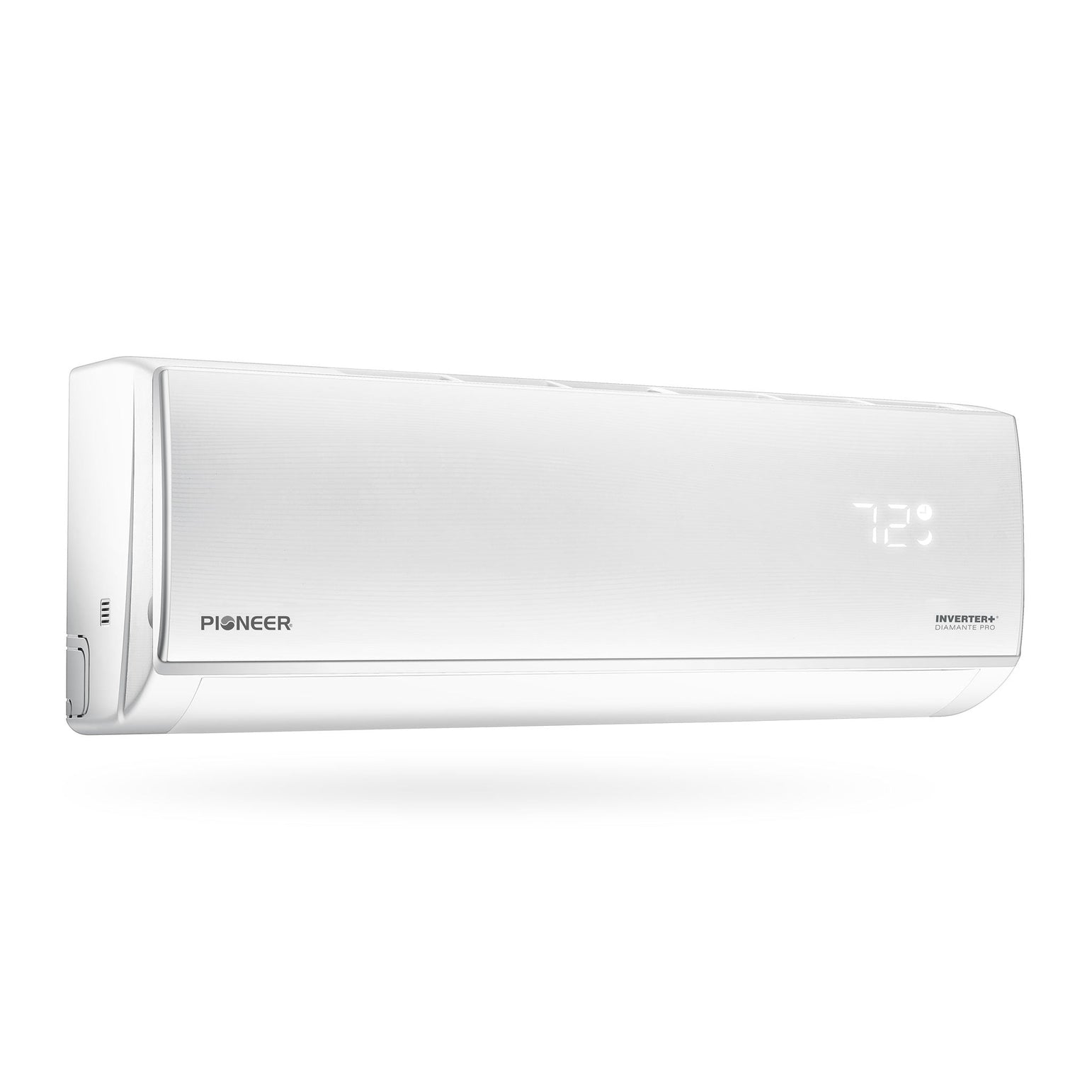

Indoor Unit
- Part Number: WT018GLSI20HLF
- Air Flow (Turbo/Hi/Med/Lo/Mute): 617 / 575 / 511 / 411 / 382 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 49 / 47 / 42 / 37 / 32 dB(A)
- Product Dimensions (WDH): 39"-3/4 x 9" x 12"-3/8 Inches
- Carton Dimensions (WDH): 43"-1/8 x 11"-3/4 x 15"-3/8 Inches
- Net / Gross Weight: 27.6 / 33.7 lbs.
-

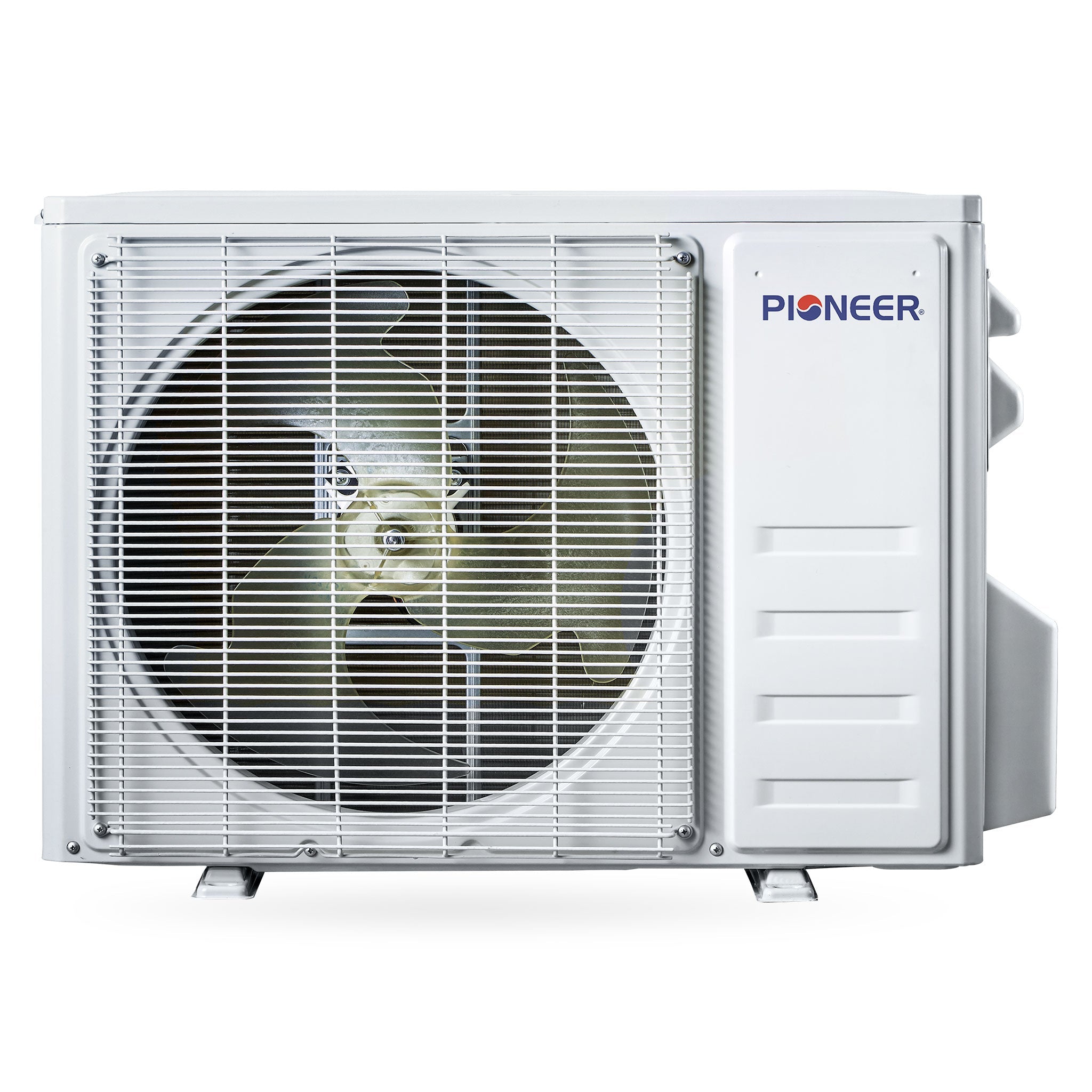

Outdoor Unit
- Part Number: YN018GLSI20RPF
- Breaker Needed: 20A (double-pole)
- Sound Level: 55 dB(A)
- Net Dimensions (WDH): 34" x 13"-3/4 x 23"-3/4 Inches
- Carton Dimensions (WDH): 35"-1/2 x 16" x 27" Inches
- Net / Gross Weight: 70.5 / 82.7 lbs
