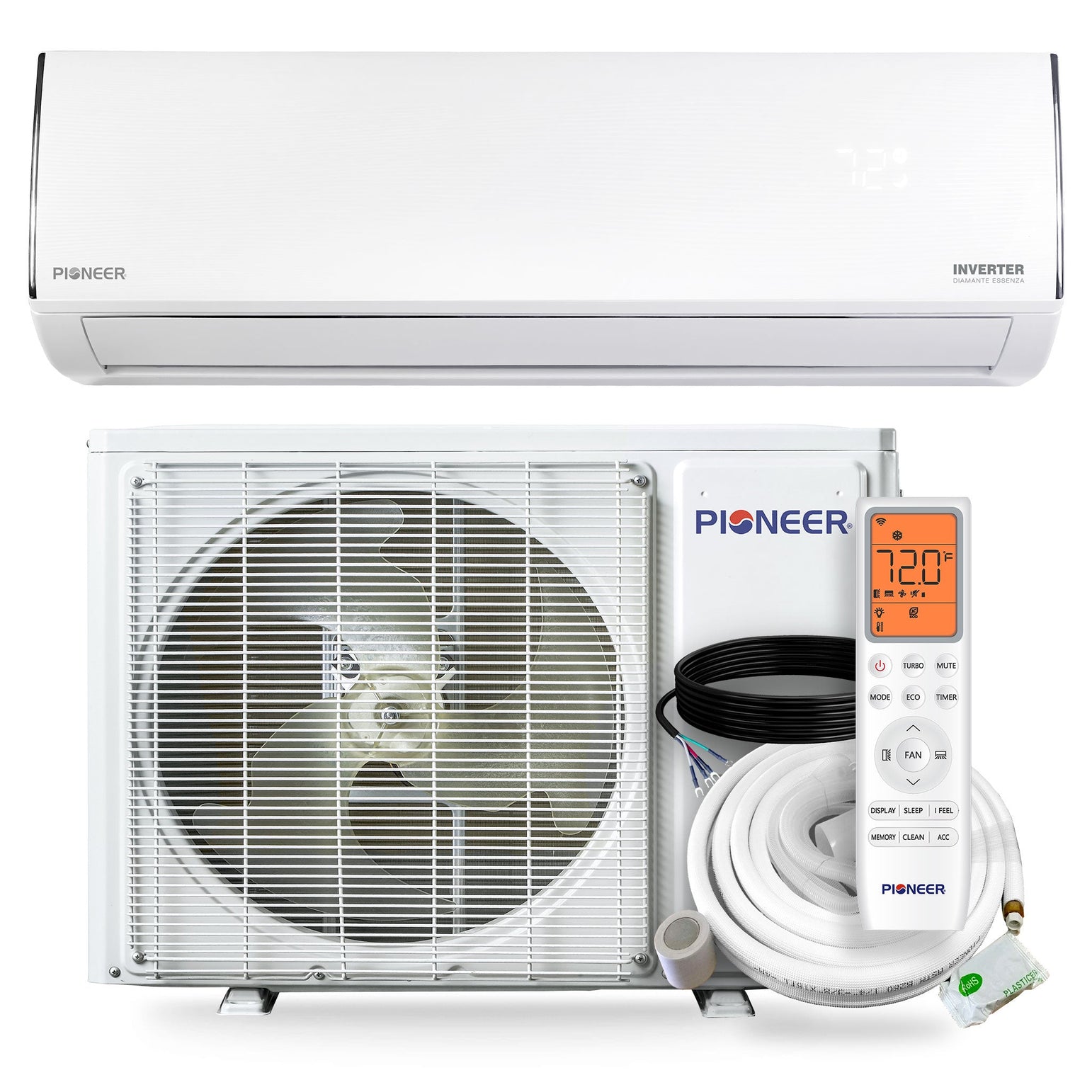

Pioneer® Diamante Essenza™ 36,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit
$1,888
$2,699
Product Type: WYT-17
SKU: WYT036GLUI17RL
Weight: 210.0 lb
Guaranteed Safe Checkout
Summary
- Standard Efficiency Diamante Essenza Ductless Mini Split Heat Pump System
- Cooling capacity: 35,000 BTU/H with 17 SEER2 / 9.5 EER2 efficiency
- Heating capacity: 35,400 BTU/H with 8.5 HSPF2 / 3.2 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall-Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance

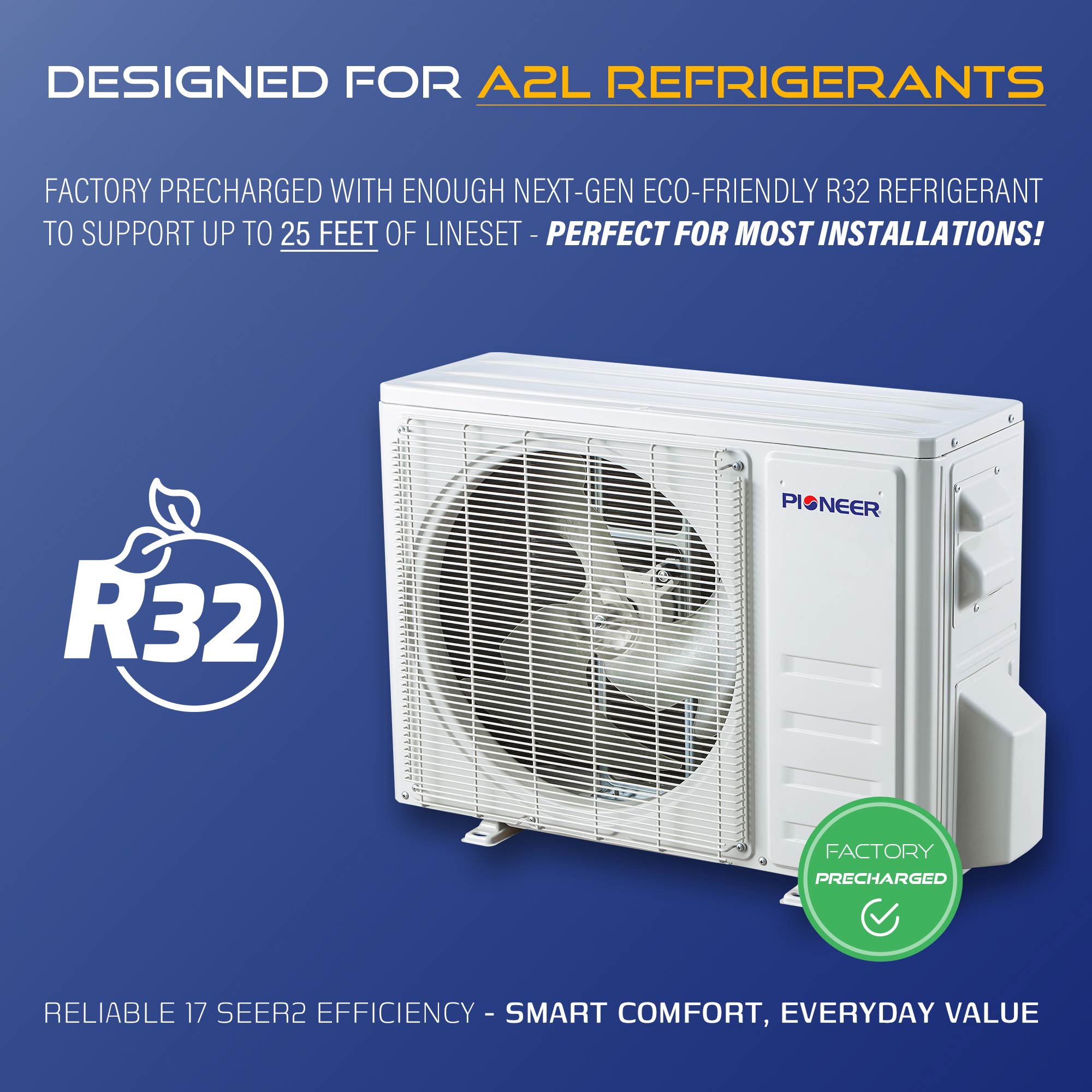

- Factory-Precharged with Environmentally Friendly R-32 Refrigerant
- Standard Ambient Range Operation (As low as 5°F in Heating / As high as 122°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Information & Performance
-
System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 35,000 BTU/h
- Cooling Capacity Range: 7,500~36,000 BTU/h
- Cooling SEER2: 17.0 BTU/W.h
- Cooling EER2: 9.5 BTU/W.h
- Heating Rated Capacity: 35,400 BTU/h
- Heating Capacity Range: 7,500~36,000 BTU/h
- Heating HSPF2 (Region IV): 8.5 / 7.5 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.2 / 1.8 W/W
- Refrigerant Type: R-32
- Recommended Room Size: 800~1350 sq ft
- Minimum Room Size: 63 sq ft
- Minimum Installation Height: 6 ft

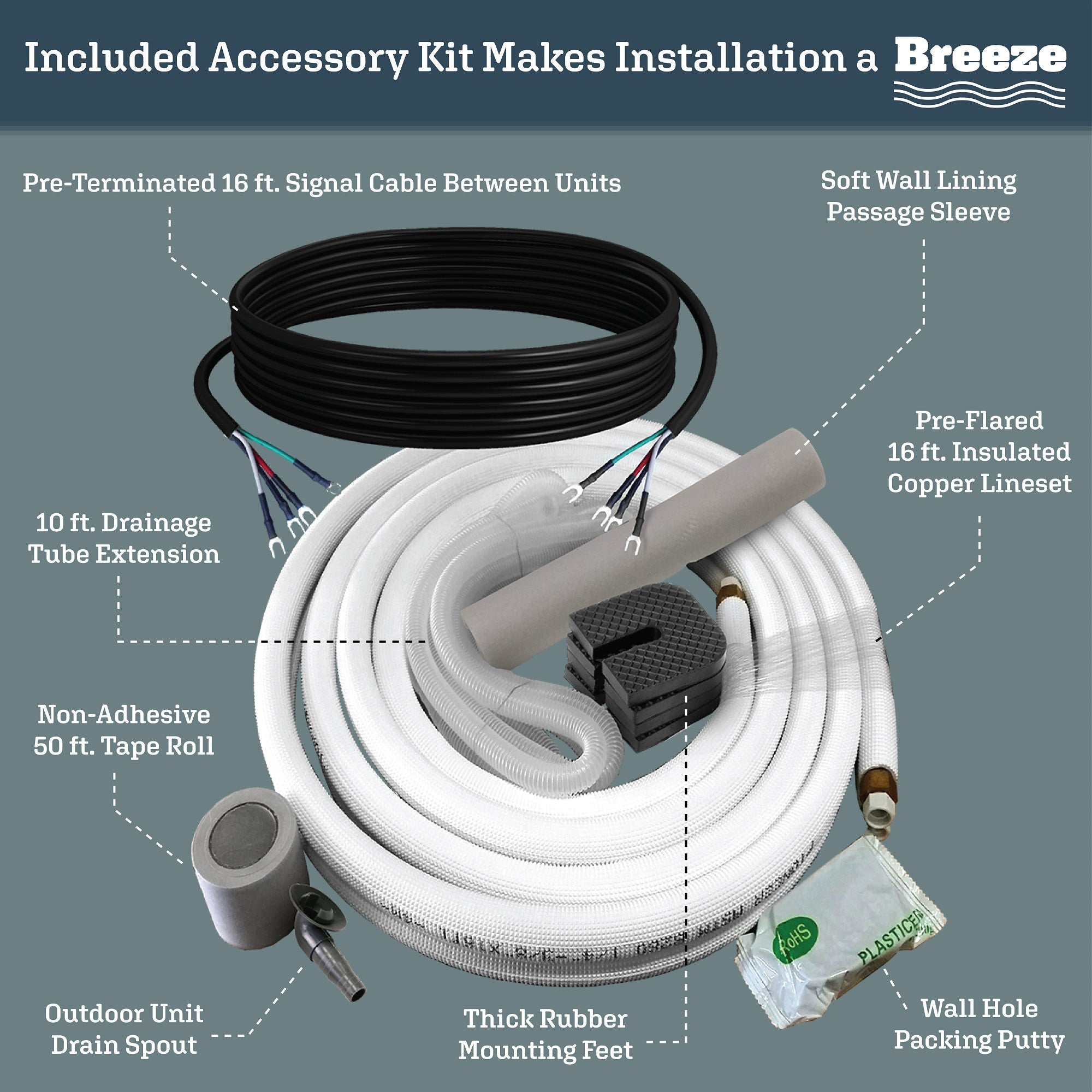

- Piping Diameter: 1/4-5/8"
- AHRI Reference: 217048738
-
Indoor Unit
- Part Number: WT036GLUI17HLD
- Air Flow (Turbo/Hi/Med/Lo/Mute): 882 / 741 / 564 / 458 / 411 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 55 / 52 / 46 / 41 / 39 dB(A)
- Product Dimensions (WDH): 46-7/8 x 10-1/4 x 14-1/4 Inches
- Carton Dimensions (WDH): 49-5/8 x 12-7/8 x 16-7/8 Inches
- Net / Gross Weight: 38.6 / 46.3 lbs.
-
Outdoor Unit
- Part Number: YN036GLUI17RPD
- Breaker Needed: 30A (double-pole)
- Sound Level: 63 dB(A)
- Net Dimensions (WDH): 38-1/2 x 16-1/2 x 31-5/8 Inches
- Carton Dimensions (WDH): 40-1/4 x 18-7/8 x 32-7/8 Inches
- Net / Gross Weight: 105.8 / 120.2 lbs
