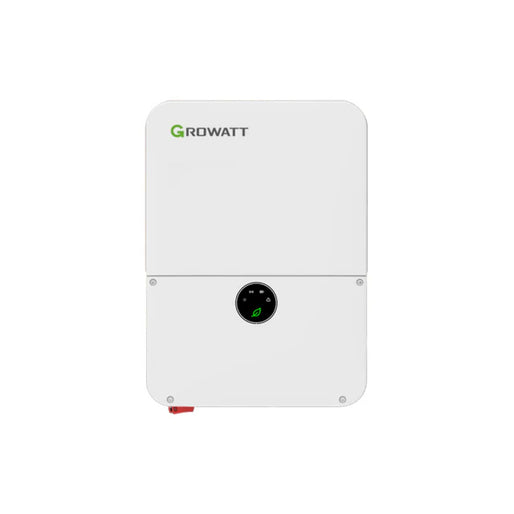

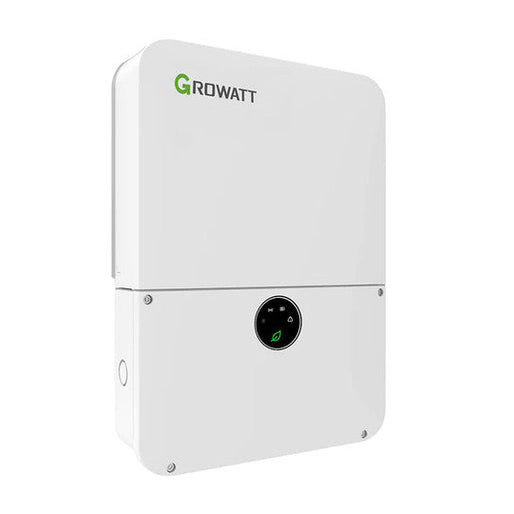

Growatt 11.4kW Grid-Tie Inverter (V3) | MIN11400TL-XH-US
Product Type: Inverter
SKU: sku-48990429315347
Weight: 100.0 lb
Guaranteed Safe Checkout
The Growatt 11.4kW grid-tie inverter MIN11400TL-XH-US offers exceptional performance for large-scale residential or commercial solar setups. Equipped with four MPP trackers, the Growatt grid tie inverter ensures maximum energy harvest from multi-array installations, even in shaded areas. Its durable NEMA4X-rated enclosure allows reliable operation in harsh outdoor environments.
Advanced IoT integration provides hassle-free monitoring and management through intuitive apps, helping users maintain optimal system performance. The Growatt 11.4kW grid-tie inverter MIN11400TL-XH-US is a top-tier solution for those seeking efficiency, safety, and scalability.
Features:
Cutting-Edge Grid-Tie:
- 11400W Nominal Output
- High 550 VDC Input (22800W Max PV!)
- 4 MPP Trackers, 2 Strings Per MPP Tracker
- Up to 98.5% Efficiency
Quality Design:
- –13°F to +140°F Operating Temperature
- Natural Convection Cooling
- NEMA4X (IP65) Rated
- 'Aerospace grade' Flame-retardant Lightweight Materials
Communication:
- Built-in 4G/Wi-Fi Communication with APP, IoT integrated Cloud and monitoring
- IOS, Android & Windows Apps
Advanced Protection & Safety:
- UL Certified (1741)
- Type III AC Surge Protection
- AC Short Circuit Protection
- Ground fault & Grid Monitoring
- AFCI Protection
- Rapid Shutdown Capable, RFCI Protection
- Anti-islanding Protection
- Residual-Current Monitoring
SKU: 1519073
Rated Output Power: 11400W
Max PV Input: 22,800W
Max MPPT Operating Voltage: 550V
Rated AC Output: 240V
Max Output Current: 48A
UL Certified: Yes
Spec Sheet: Download
Manual: Download
Quick Guide: Download
Certificate: Download
