SALE
24V Interface Module Kit for Pioneer® Quantum Series 230V Mini Split Systems
$138.75
$198.25
Product Type: ACC
SKU: TST-24VIM-ECFMS
Weight: 6.0 lb
Guaranteed Safe Checkout
Overview
Description
This handy interface kit enables you to connect your Pioneer mini split system to, and be controlled by, any analog 24V heat pump thermostat brand such as Nest, Honeywell, or Ecobee. The kit includes everything you need to get started, and requires no external power source when combined with our inverter-driven equipment.
*Each indoor unit must be wired to its own integrated control system and thermostat.
Compatibility
Compatible with all Pioneer® Quantum Series systems that operate on 230V service. Compatible systems include:
| WYS/WS (230V only) |
| CYB/CB Series |
| CYK/CK Series |
| UYB/UB Series |
| FYB/FB Series |
| RYB/RB Series |

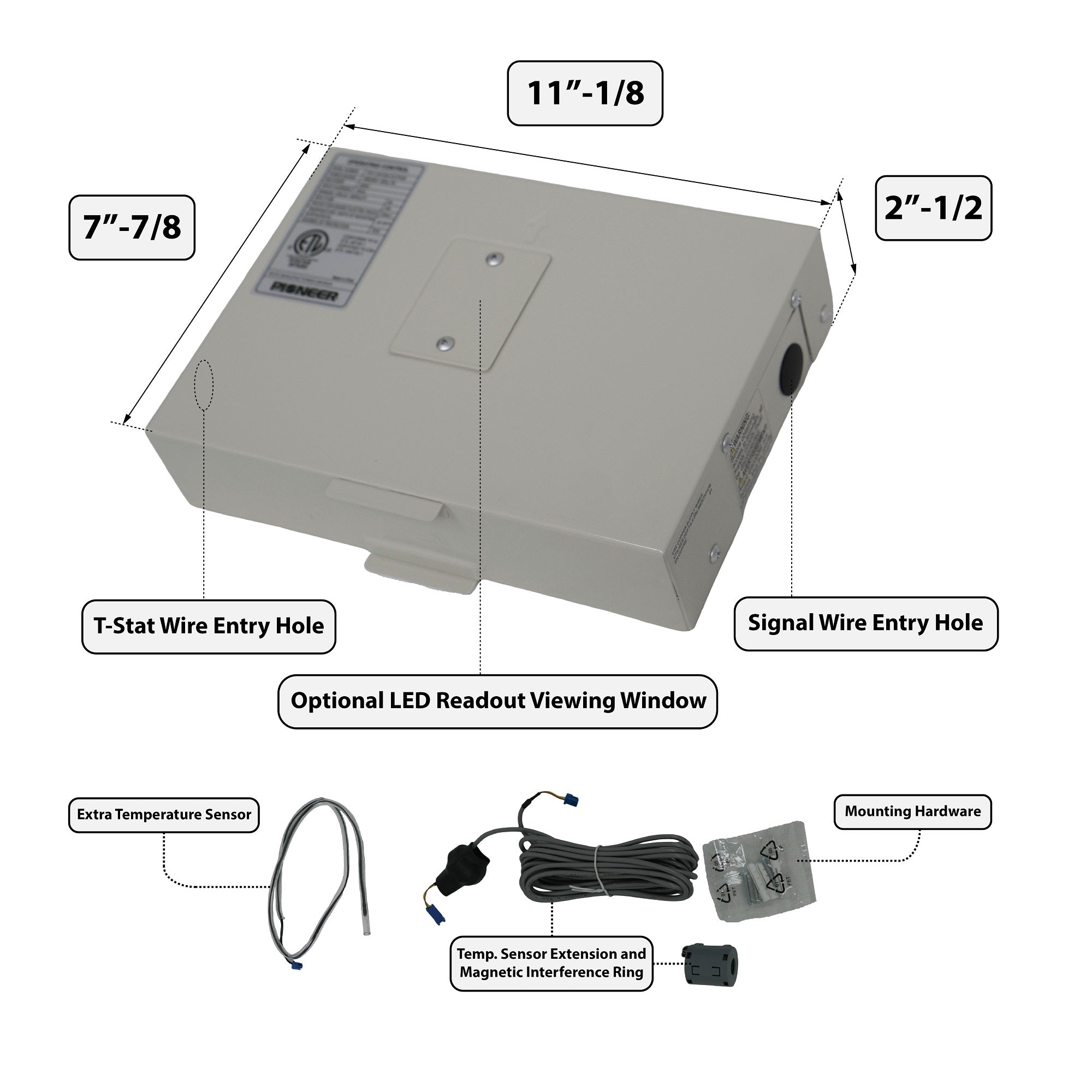

Specifications
- Power Source: 208/230V~60Hz/1Ph
- Includes additional T1 Sensor for applications using fan relays
- Optional viewing hole for LED readout
- Wall mounting hardware provided
