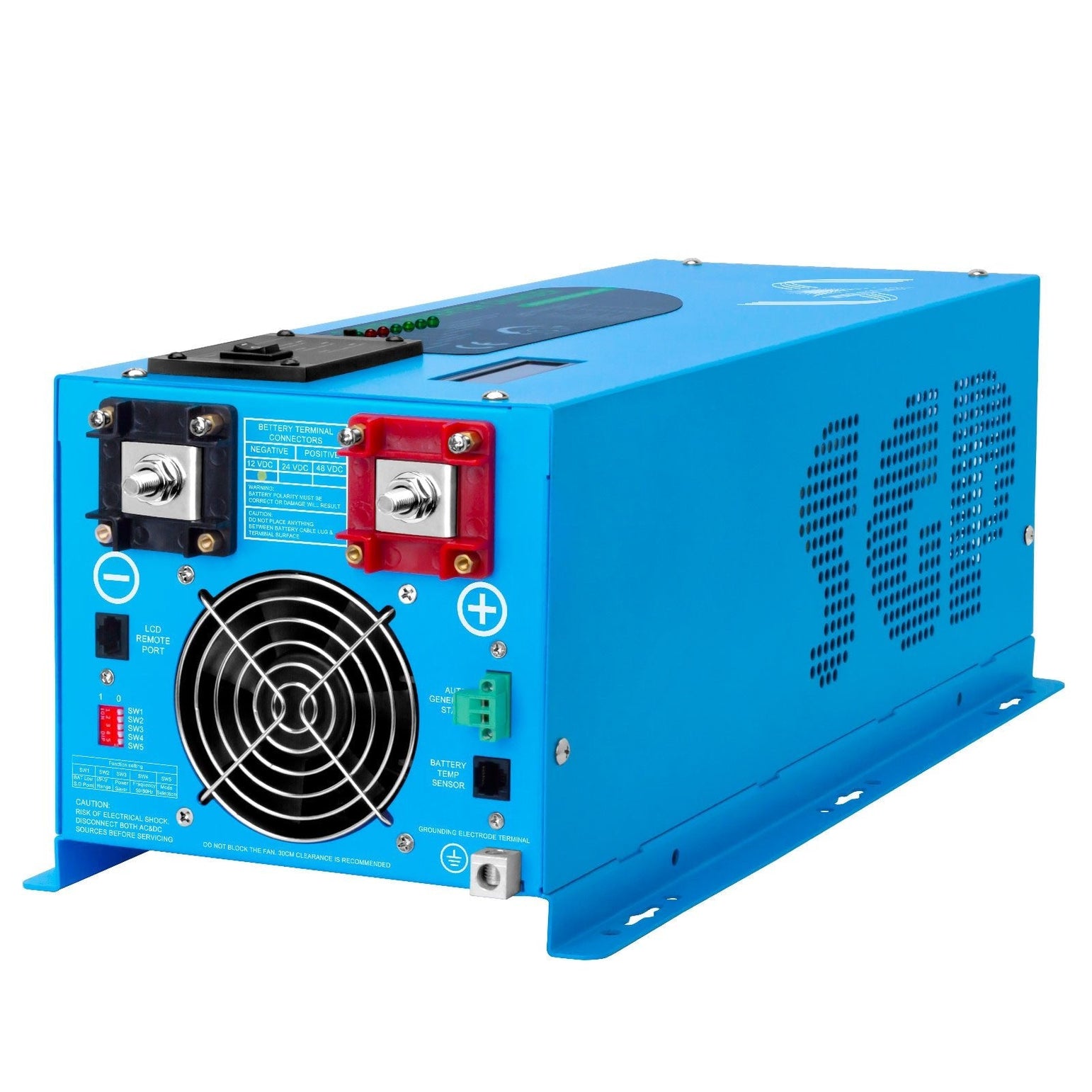

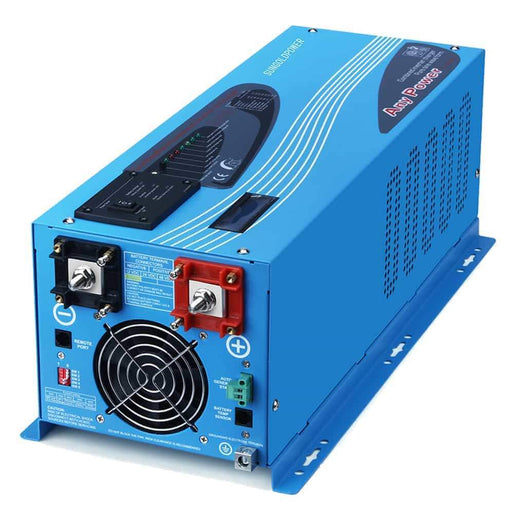

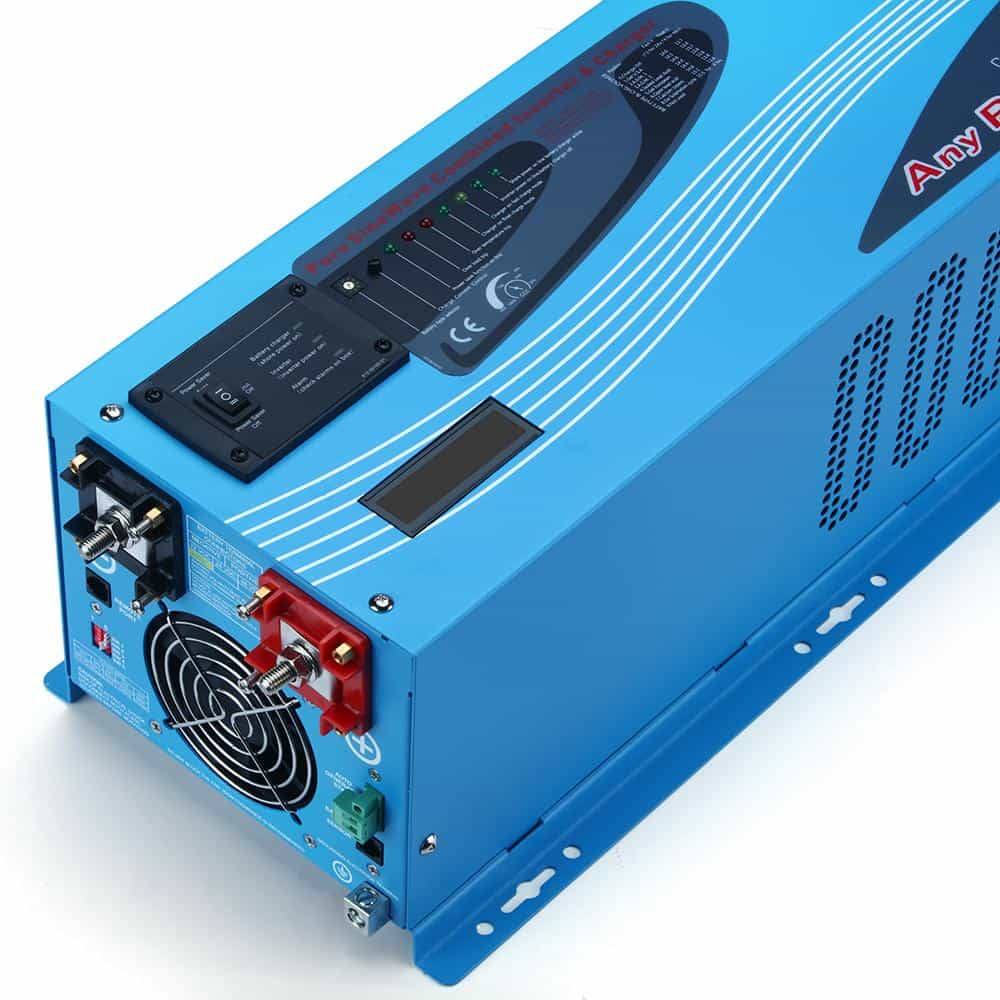

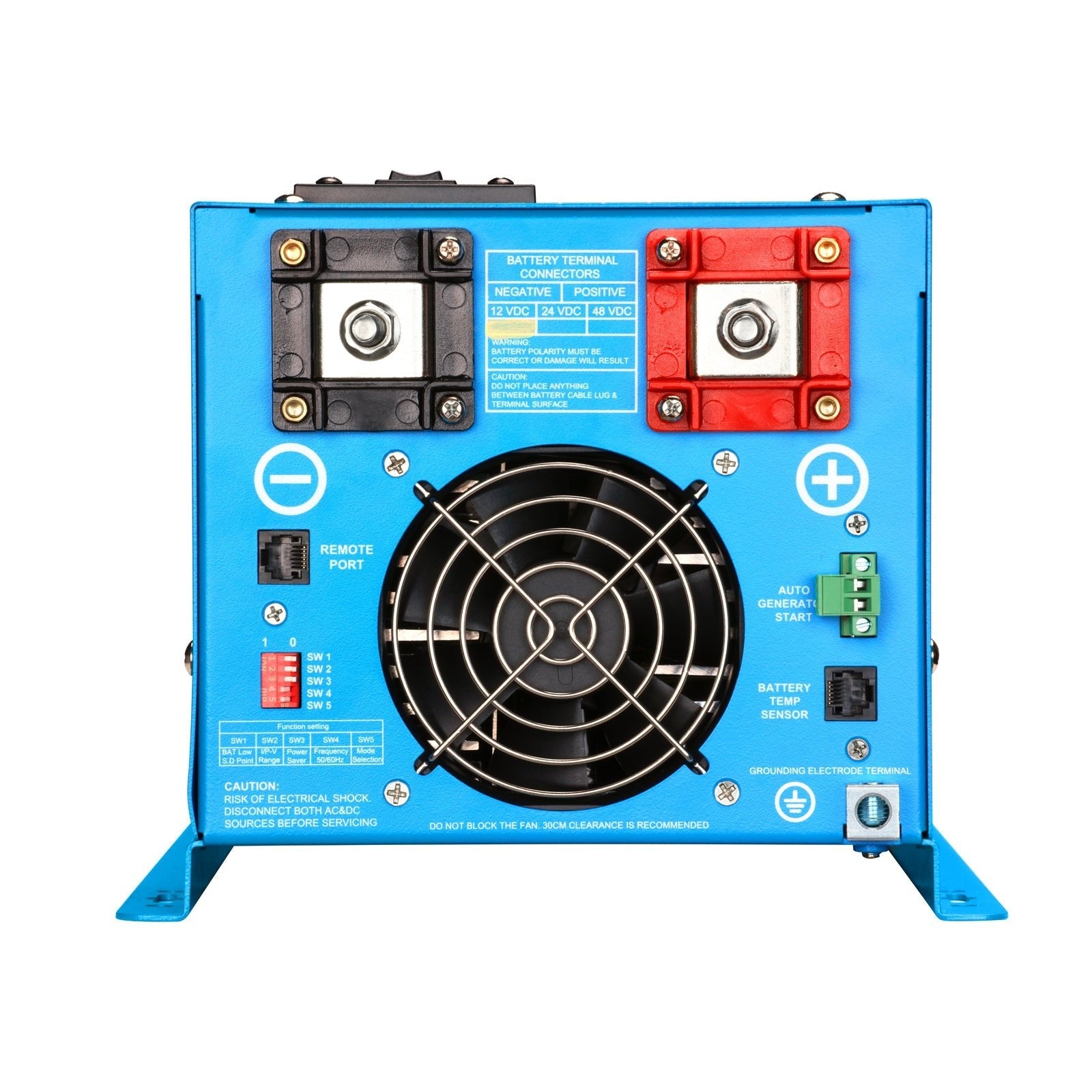

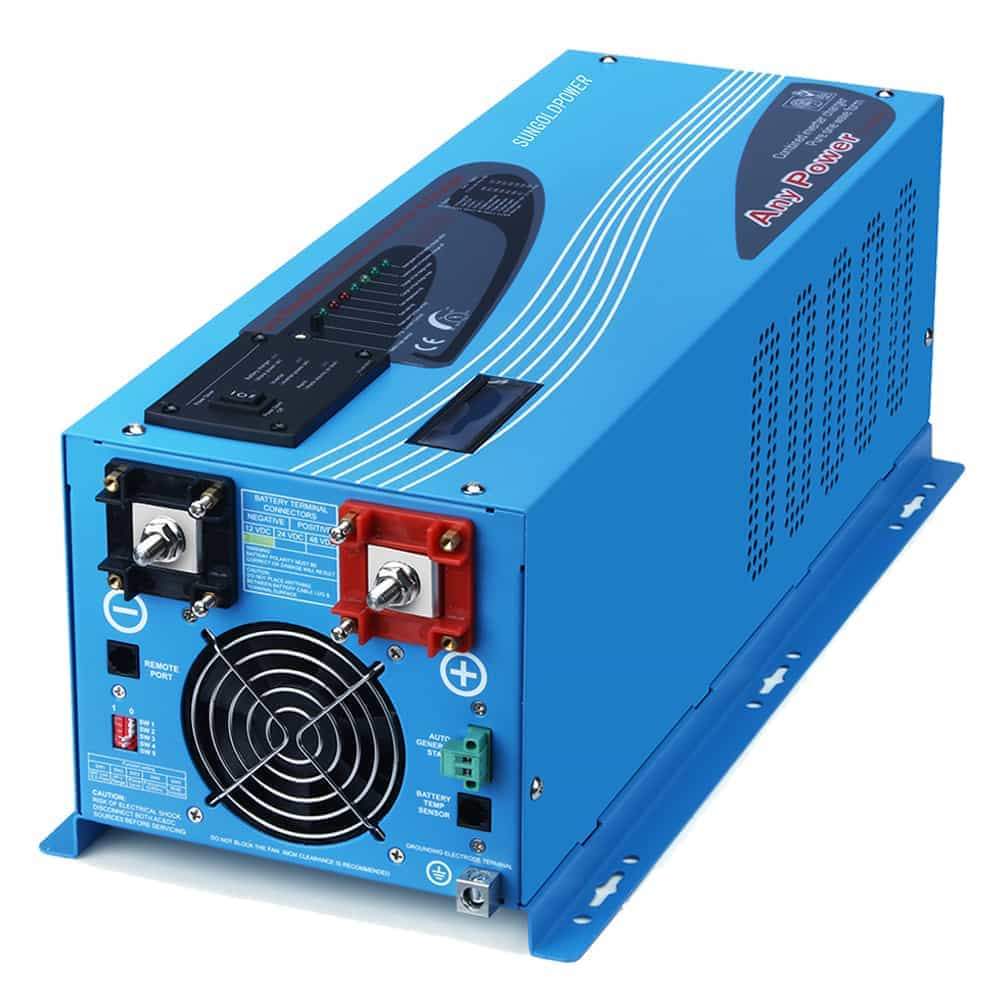

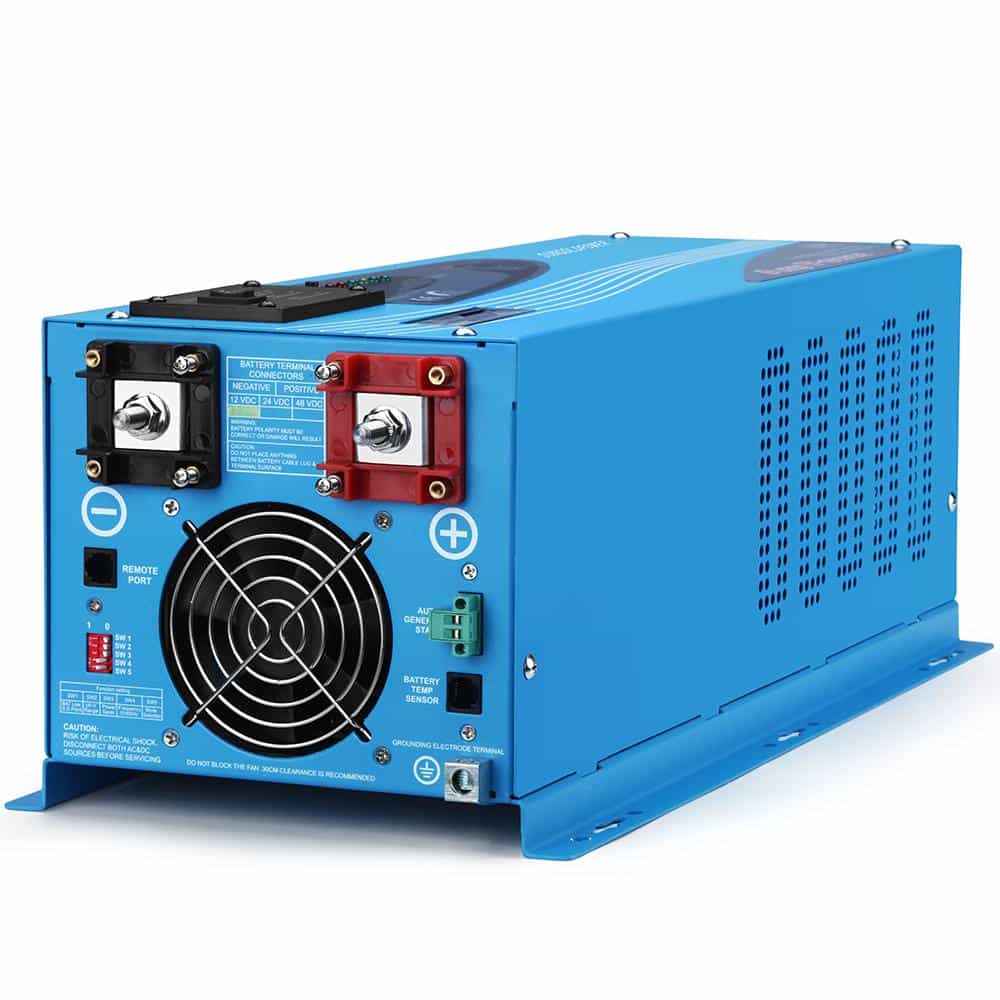

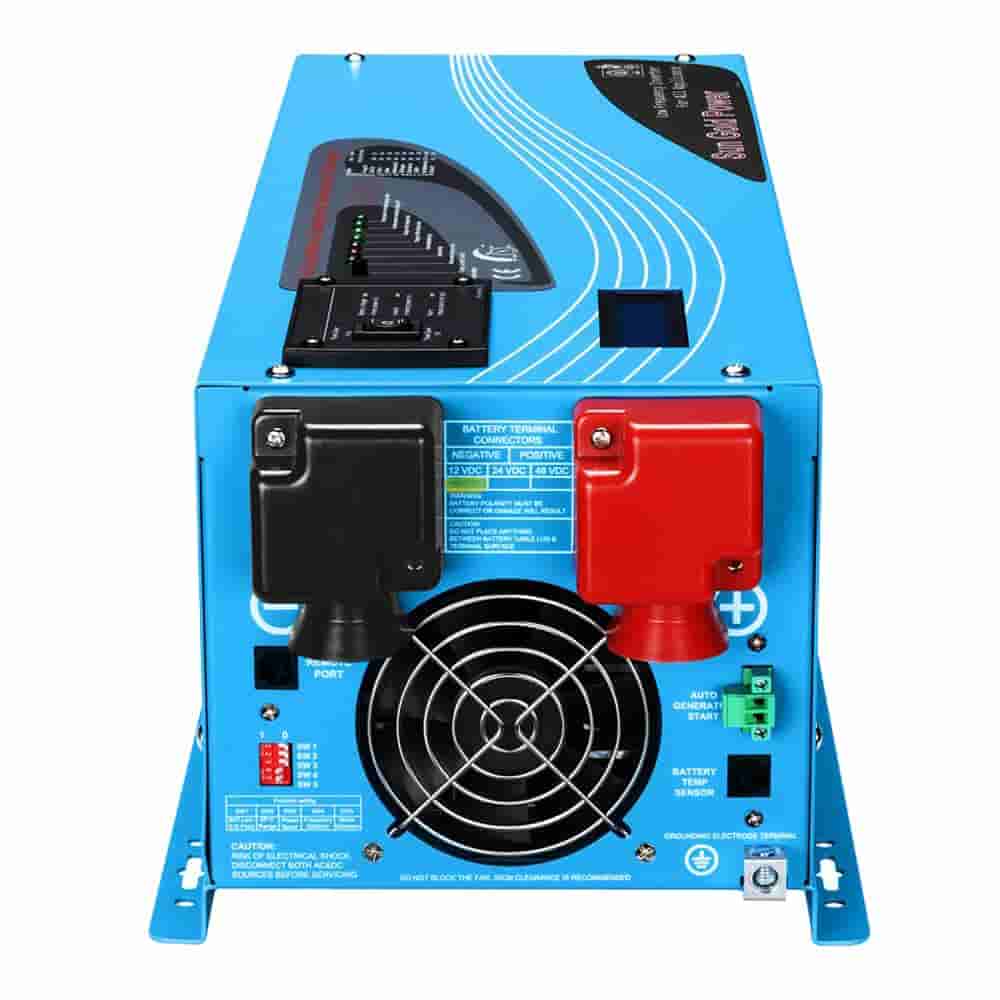

2000W DC 12V Pure Sine Wave Inverter With Charger

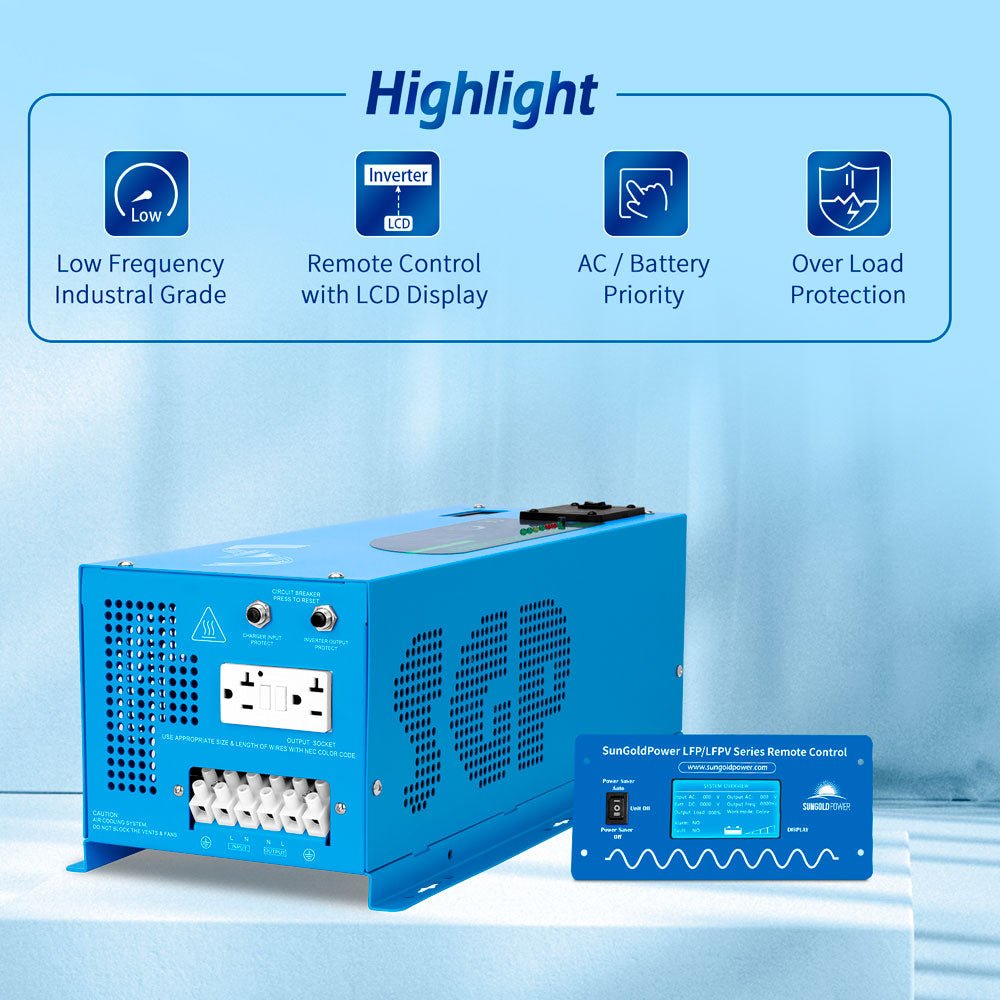

Highlight:

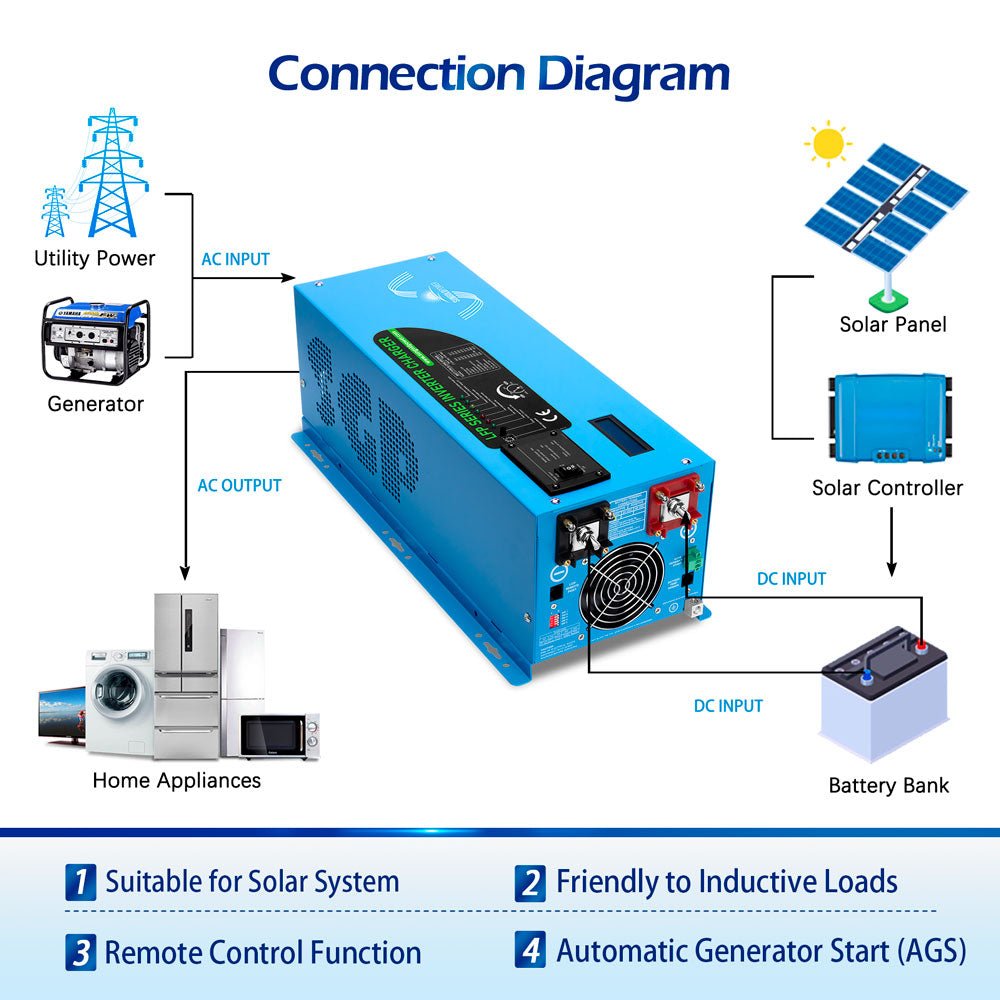

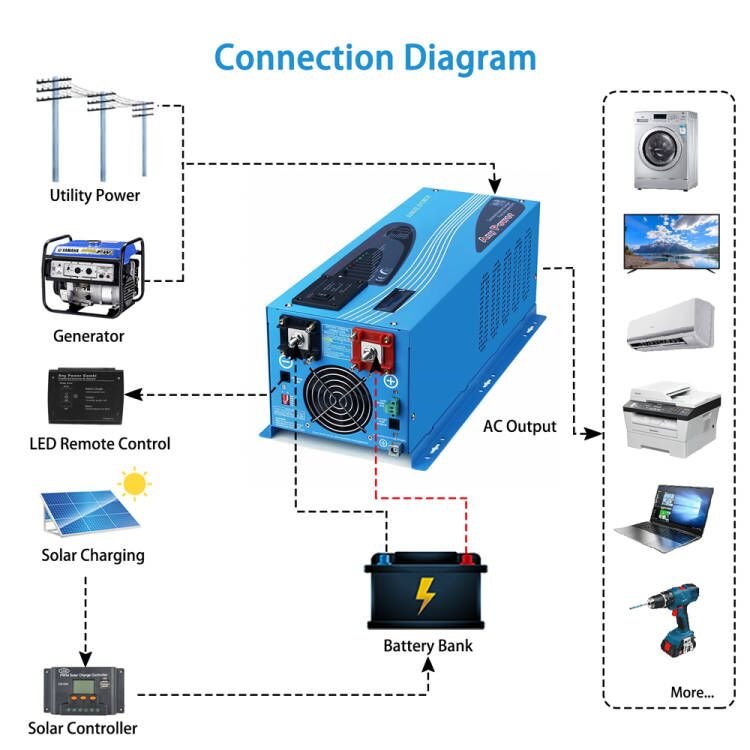

• ¡ï This LFP?Series 2000 Watt Pure Sine Wave Inverter is a combination of an inverter, battery charger, and AC auto-transfer switch. Low frequency, low Idle Current, BTS cable, remote control.

• ¡ï This 2000 watt inverter charger requires 120VAC input?and can provide?120VAC output?power for the appliances, and it can output 50 or 60Hz via the SW4.

• ¡ï AC/Battery Priority: Our inverter is designed with AC priority by default, you can choose the battery priority by SW5 switch.

• ¡ï Adjustable Charging Current: The max charge current can be adjusted from 0%-100% via a liner switch.?

• ¡ï Auto Gen Start: The inverter can start up a generator when the battery voltage goes low, and turn the generator off after battery charging is finished.

Features

Main Features:

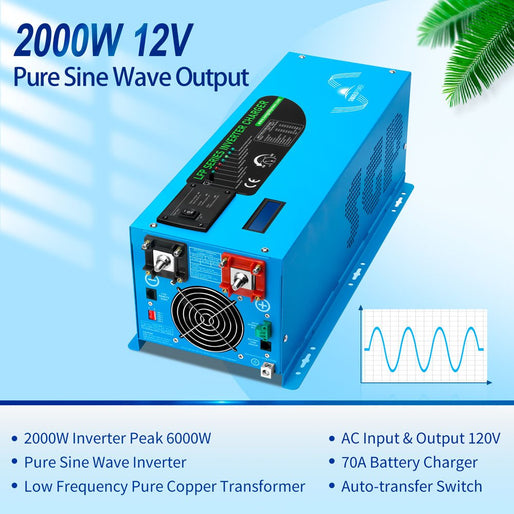

• 2000W LFP Low-Frequency Pure Sine Inverter With Charger.
• AC/Battery Priority Selector.
• Automatic Generator Start.
• GFCI Socket, Safety and Convenient.
• The low-frequency inverter can power all kinds of appliances.
• LCD Display, Remote Control, BTS including.
• Low Idle Consumption.

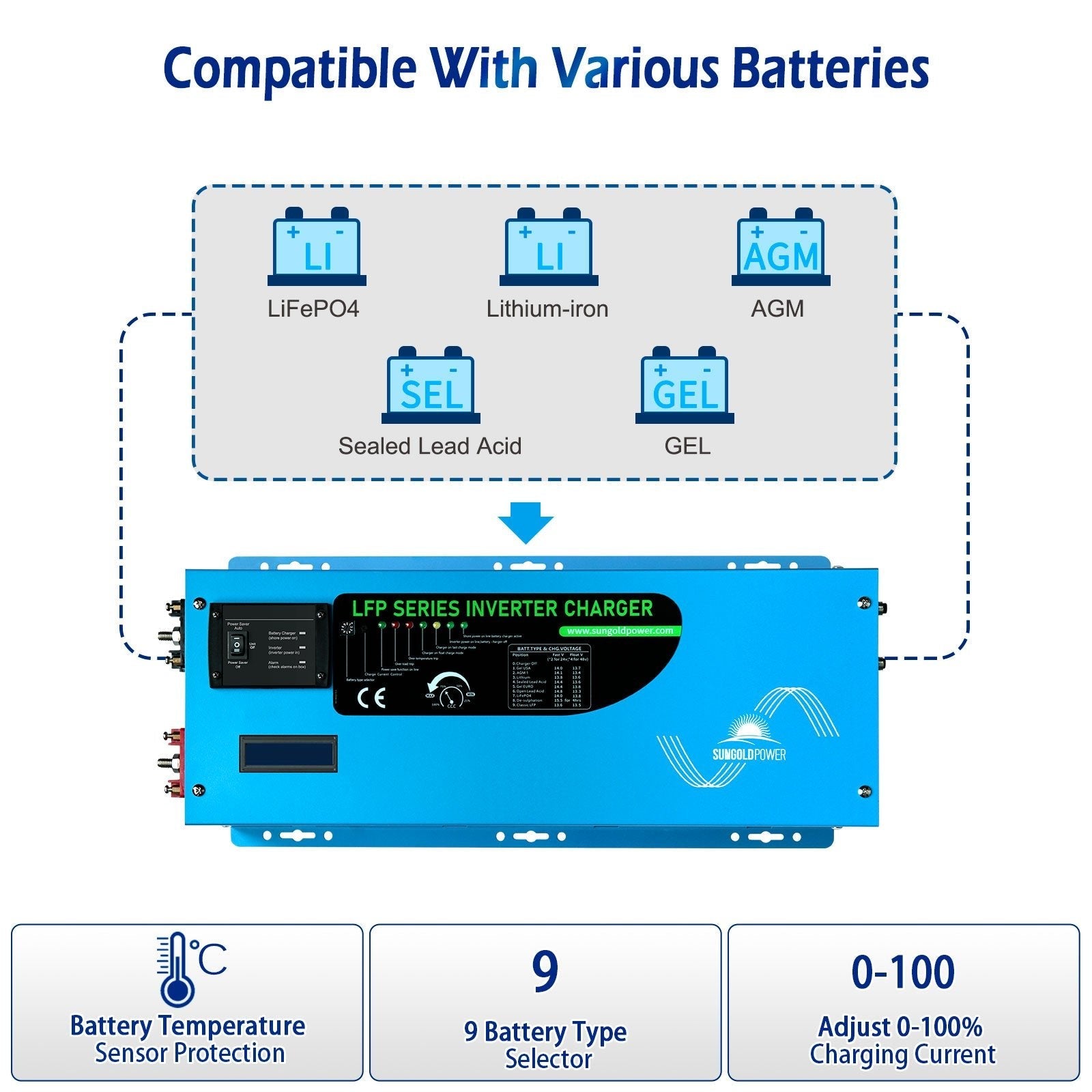

• 7 battery type settings for the charger.
• Multi Stage Smart charger 70+/-5A, the charger can be disabled.
• 10 msec typical transfer time.

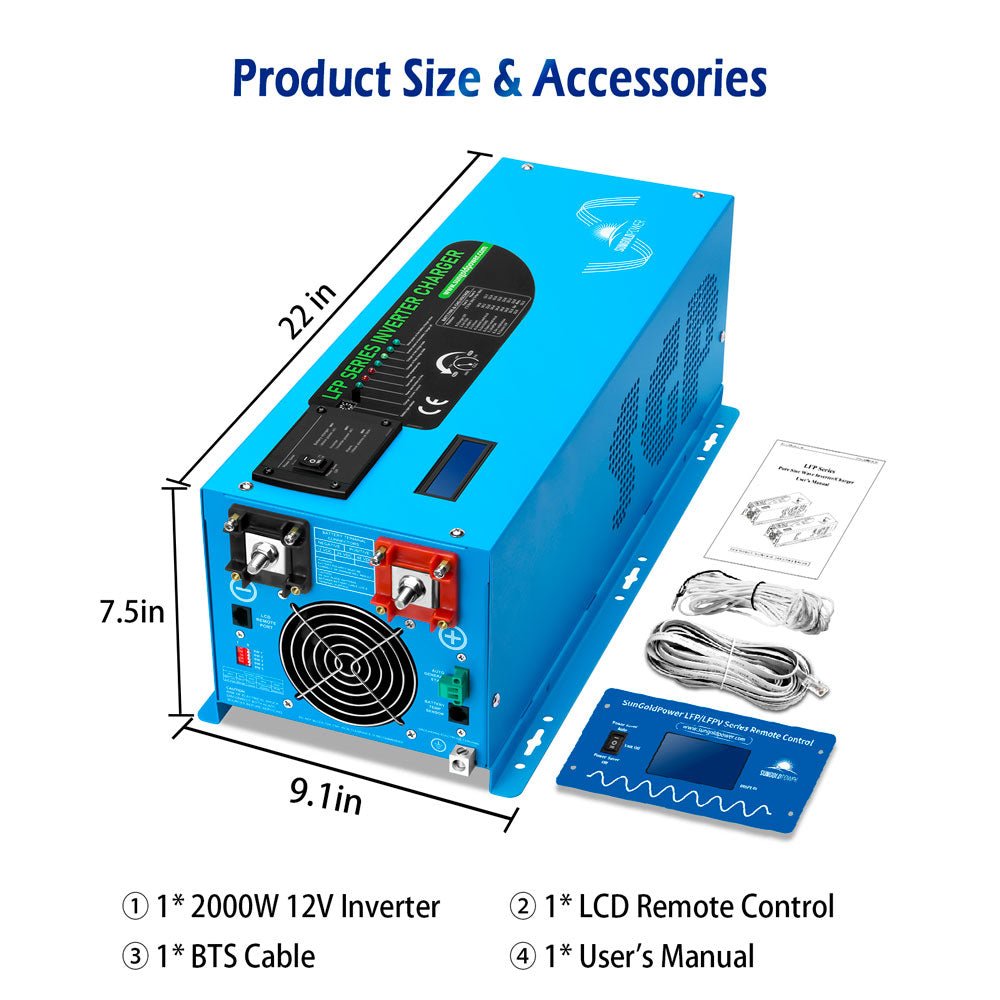

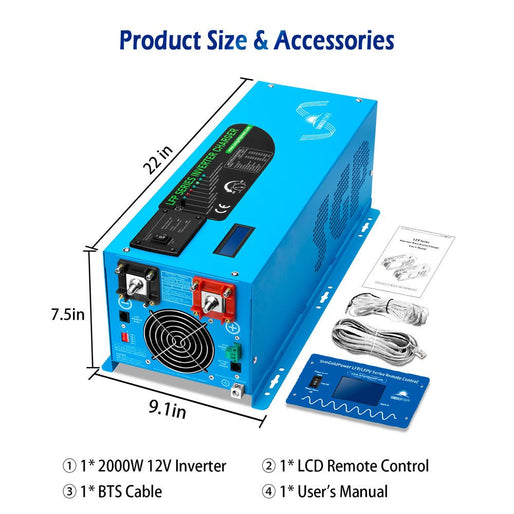

Packaging:

• 2000W 12V Low-Frequency Pure Sine Inverter
• English Manual
• Remote Control
• BTS Cable
• Unit Weight: 53LB
• Unit Size: 17.4 x 9.5 x 7.8?inch
• Shipping Weight: 57LB
• Shipping Size: 23 x 12.6 x 12.0?inch

Specification

Inverter Output:

• Continuous Output Power: 2000W?
• Surge Rating: 6000W?(20 Seconds)
• Output: 120VAC, 60hz?
• Output Wave: Pure Sine Wave (bypass mode)
• Typical Transfer Time: 10ms (MAX)
• Nominal Efficiency: >88%

DC Input:

• Nominal Input Voltage: 12.0Vdc
• Minimum Start Voltage: 10.0Vdc
• Low Battery Alarm: 10.5Vdc-11.0Vdc
• Low battery Trip: 10.0Vdc-10.5Vdc (select by SW1)
• High Voltage Alarm: 16.0Vdc
• Low battery Voltage Restart: 13Vdc
• Idle Consumption: 25W
• Power Saver Mode Idle Consumption: 12W

AC Charger:

• Charger Rate: 70+/-5A
• AC input Range (Grid or Generator): 90V-135VAC/100V-135VAC (select by SW2);?
• Over Charge Protection Shutdown:15.7V
• Selectable Charge Setting: off 0%-100%
• 3-step intelligent battery charger

User Manual

Download LFP Series Pure Sine Wave Inverter/Charger User's Manual

FAQ

Frequently Questions Answer

1. What is the standby/idle current draw of the inverter on 12V?

? ??Dear Customer, the standby current is 2A for this product, thanks.

2. What gauge wire should be used for the chassis ground?

? ? Dear Customer,?it requires AWG1/0 wire, thanks.

3. In battery priority, when the battery is depleted, it will switch to AC/charger mode? When the battery is recharged, it will switch back to the battery/inverter?

? ? Dear Customer, it's the same as you described.

?
