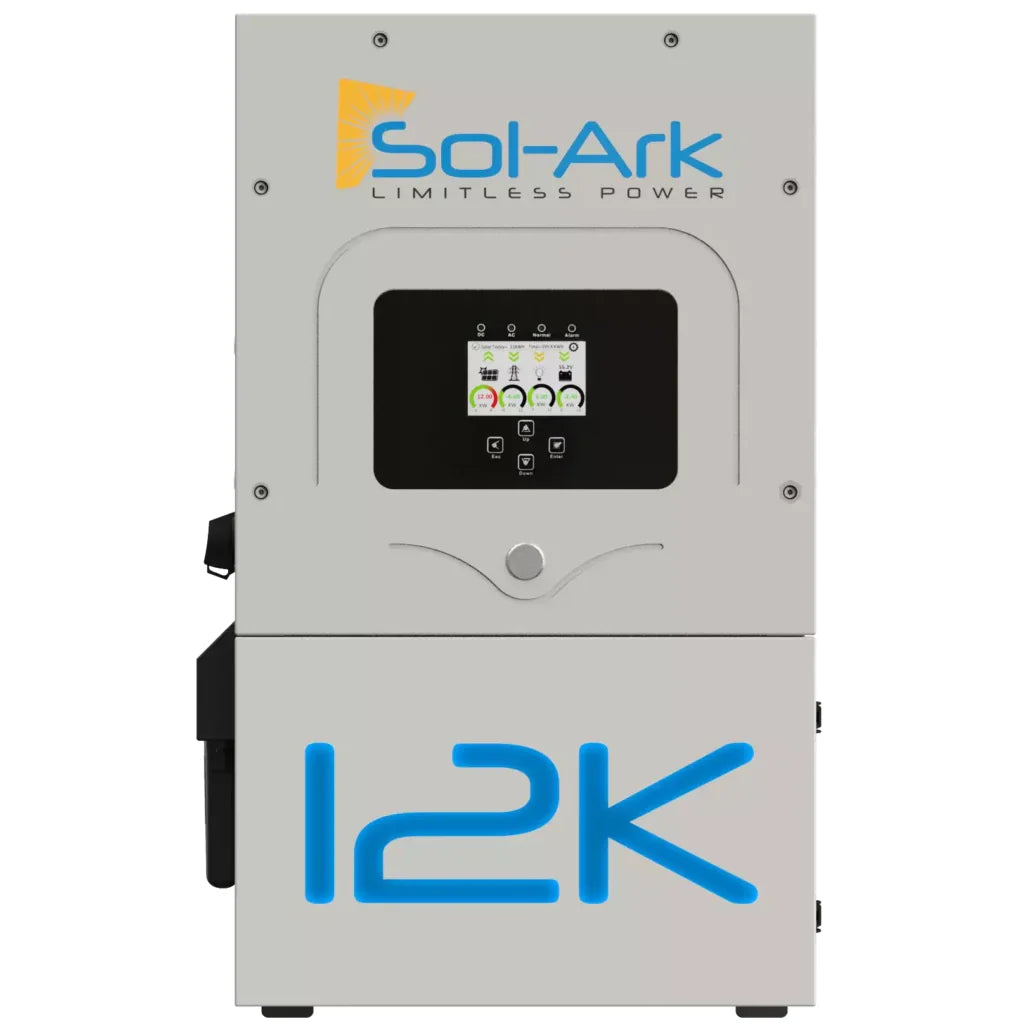

Sol-Ark 12kW Hybrid Inverter | All-In-One Solar Inverter | 13000W PV Input | 12000W Output | 48V 120/240V Split Phase | Sol-Ark 12K-2P

$4,850
$5,999.00

Product Type: Inverter
SKU: sku-51778748416275
Weight: 80.0 lb
Vendor: Portable Sun LLC

EMP Hardened: No

Unfortunately pickup is currently unavailable

Or contact our sales department and we will try to help you

Guaranteed Safe Checkout

Cantidad mínima de pedido (MOQ): Para garantizar el éxito de nuestra misión de revolucionar el acceso a la energía solar en el Caribe, hemos implementado una política de cantidad mínima de pedido. Para pedidos mayores que nuestro tamaño promedio de pedido, la cantidad mínima de pedido para paneles individuales es de 5 unidades, además de los costos de envío.

Description

Sol-Ark 12K-2P Hybrid Inverter—Resilient Partial-Home Backup for NEM 3.0 Homes

Upgrade any Sol-Ark inverter with a military-grade EMP shield that meets MIL-STD-461G, guarding your solar array, batteries, and critical loads against electromagnetic pulses, solar flares, and severe lightning surges—so your power stays online when the grid and other systems fail.

Bring grid-independent peace of mind to your home with the Sol-Ark 12K-2P. This battery-agnostic, 48 V hybrid inverter delivers 12 kW of continuous, split-phase power to your essentials while accepting up to 13 kW of rooftop solar. A factory-installed transfer switch and 50 A grid pass-through eliminate costly service-panel upgrades, making installation fast and affordable.


Key Performance Highlights

  • Partial-Home Backup: 9 kW automatic UPS keeps refrigerators, lighting, pumps, Wi-Fi, and home office gear running during outages.

  • Built-In Transfer Switch (5 ms): Sub-UPS-class switchover protects sensitive electronics; no external ATS required.

  • Battery-Agnostic 48 V Port: Works seamlessly with any LiFePO₄, AGM, or lead-acid bank; 185 A charger refills batteries quickly after a storm.

  • NEM 3.0 & TOU Ready: Programmable, multi-season time-of-use settings store solar when rates peak and export excess when utility credits are highest.

  • Dual MPPT & AC-Coupling: Two full-sized MPPT trackers plus 9 kW AC-coupled input let you mix string inverters or microinverters for maximum harvest.

  • EMP-Hardened Option: Add MIL-SPEC shielding and dual surge suppression to stay online through lightning strikes and electromagnetic events.

  • EV & Generator Integration: Two-wire start for gas/LP gensets and single-circuit smart-load shedding keep Level-2 chargers from draining your battery bank.

  • Virtual Power Plant Ready: Revenue-grade metering and open communications prepare your system for future VPP and demand-response programs.

  • Outdoor-Rated Durability: NEMA 4X aluminum enclosure, -40 °C to +50 °C operating range, 10-year extendable warranty.


Core Specs at a Glance

  • Solar Input: up to 12 kW (13 kW STC), 150–425 V MPPT range, 500 V max

  • AC Output: 9 kW continuous / 18 kW surge, 120/240 V split-phase (208 V compatible)

  • Battery Charger: 185 A @ 48 V

  • Grid Pass-Through: 50 A service-side or load-side connection

  • Certifications: UL 1741-SB, IEEE 1547-2018; UL 9540 system options available

  • Dimensions / Weight: 31.5 × 18 × 8 in; 78 lb


Power your essentials, slash peak-hour bills, and charge your EV—all with one smart inverter. Add the Sol-Ark 12K-2P to your cart today or reach out to our NABCEP-certified team for a free partial-backup design and quote.



Installation and User Manual: Download

Sol-Ark Low Voltage Battery Integration Guide: Download

Sol-Ark Residential Inverter Basic Programming Guide: Download

SDM630MCT RGM User Manual: Download

Spec Sheet: Download

UL Certificate 1741SB: Download



Secure Payments for Your Journey Towards Solar Energy. Products You Can Trust.

Your solar investment deserves top-notch protection. We support you with industry-leading security measures to keep your transactions safe and sound. Shop with confidence knowing that your financial information is protected with advanced encryption and fraud prevention protocols. We take your financial security seriously, so you can focus on the bright future of solar energy.

Frequently Asked Questions

How do I know how much energy my house consumes?

  • Category:
  • Energy

There are two ways to obtain this information. The first would be to review the electricity bill you receive monthly. There you can get an idea of how much your consumption is in kilowatts. The second option would be to hire an electrician to come to your home and carry out a load census.

How many hours can the battery supply power?

  • Category:
  • Energy

That will depend on your use and the amount of battery storage, as well as your technology. To give an example: a 12 volt, 250 amp battery contains 3,000 watts. That means you have 3,000 watts to be able to consume up to what the battery specifications allow (it is not recommended to use batteries at their maximum capacity).

How do I know what type of system I need?

  • Category:
  • Usability

This is different for each person, as you must determine what you want a solar system for. Do you want it to power your entire home or run certain appliances in case of an emergency or power outage? Based on that answer, the type of system you need will be determined.

Can I continue adding panels to my system?

  • Category:
  • Usability

This will depend on the technical specifications of your inverter and batteries since each system has its limitations. All solar panel installations must comply with limits on connections, otherwise it may cause the system to explode or burn out. Also taking into account physical limitations such as the dimensions of the roof and size of the solar panels, among many other things.

How many discharge cycles does the battery have? What type of battery is it?

  • Category:
  • Usability

The one we currently have contains 1,200 discharge cycles. It is an AGM battery, which means it requires no maintenance.

What is the best type of solar panels?

  • Category:
  • Recommendations

There are many brands, models and types of solar panels. Generally speaking, monocrystalline and class A panels are the best solar panels. Additionally, having a bifacial panel captures a greater amount of light.

Are used solar panels worth it?

  • Category:
  • Recommendations

If they are in good condition, yes, since solar panels can produce energy for more than 25 years. Which means that a panel with a few years of use would still work well.

What are mono and poly panels?

  • Category:
  • Features

Monocrystalline panels are panels whose cells are made up of a single crystal and not many fragments as is the case of the polycrystalline panel. Many people debate which ones are better.
