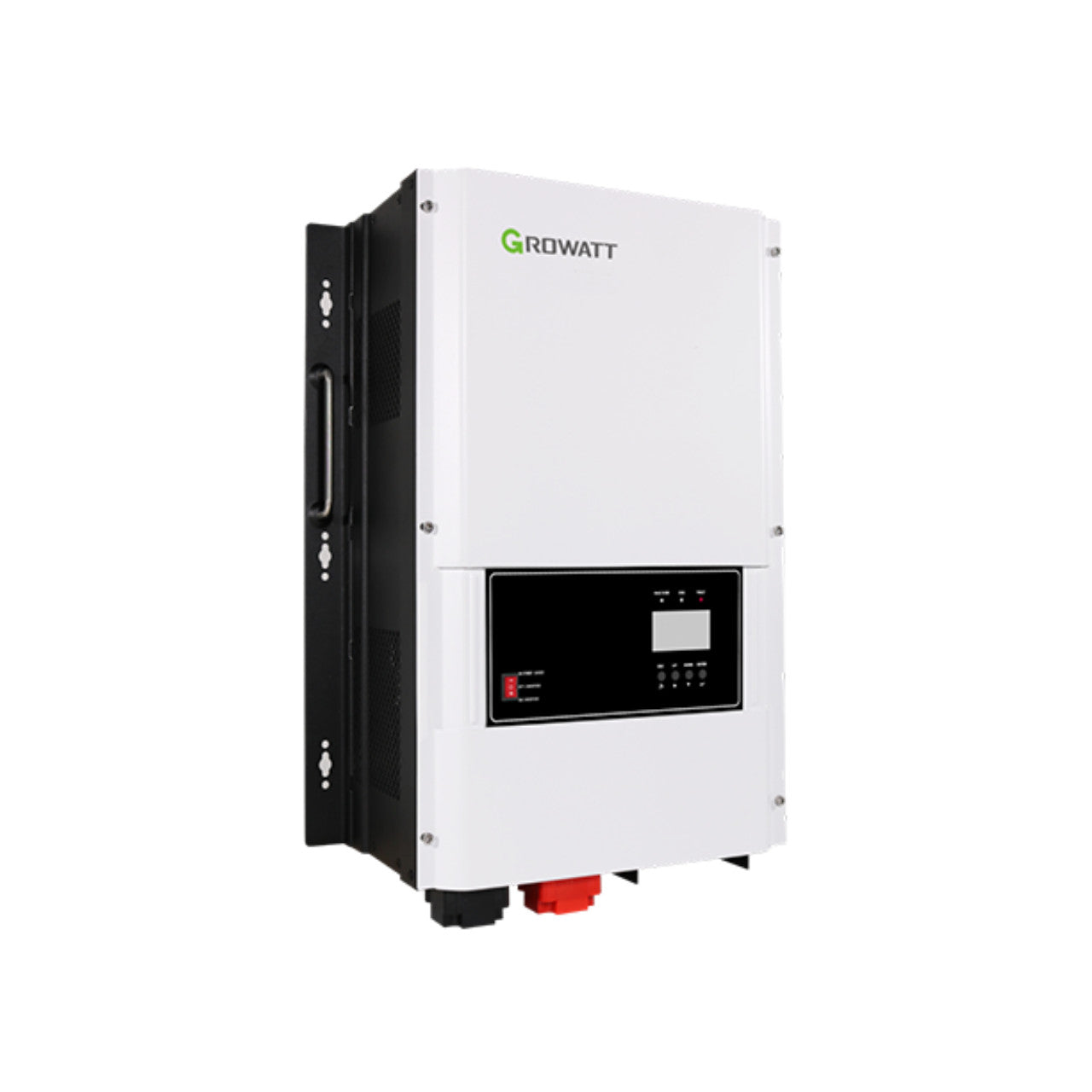

Growatt SPF 12000KT DVM-US — 12 kW Split-Phase Off-Grid Inverter/Charger

UL 1741 certified • 120/240 V true split-phase • Dual 120 A MPPTs • 36 kW surge

Take your off-grid or backup system to pro level with the Growatt SPF 12000KT DVM-US, a low-frequency, pure-sine inverter that bundles a high-power transformer, dual solar MPPTs, and a 120 A generator/utility charger into one rugged, UL-listed package. Built for cabins, whole-home backup, small farms, and light-commercial sites that demand rock-solid 120/240 V power, this all-in-one unit drives heavy loads while keeping batteries topped up from solar or genset automatically.

Key reasons installers love it

• Real split-phase output (120 V / 240 V) — runs everything from kitchen appliances to 240 V well pumps without an external autotransformer.

• Massive 36 kW (3×) surge for 10 ms — starts compressors, air-conditioners, and motor loads without brownouts.

• Dual MPPTs, 120 A total — connect mixed-orientation PV strings (up to 150 V DC each) and harvest every watt, even at dawn or in partial shade.

• 120 A low-frequency AC charger — rapid battery recovery from a generator or the grid; perfect for cloudy stretches.

• 48 V battery platform — pair with today’s popular LiFePO₄ racks or large lead-acid banks for up to 600 A continuous discharge.

• Comprehensive protections — overload, short-circuit, reverse-polarity, high-temperature, and deep-discharge safeguards keep your investment safe.

• Configurable input priority — choose Solar-first, AC-first, or Generator-assist via the integrated LCD.

• Remote monitoring ready — add the optional WiFi/GPRS dongle for cloud performance tracking, alerts, and firmware updates.

• UL 1741 & FCC compliant — meets North-American safety standards for peace of mind and easy inspection sign-off.

Quick-view specs (no-table format)

• Rated AC Output: 12,000 W continuous @ 120/240 V split-phase

• Peak Surge Capacity: 36,000 W (10 ms)

• Max PV Input (total): 7,000 W (60 – 150 V DC, 2 × MPPT)

• Battery Voltage: 48 V DC (nominal), 40 – 60 V operating window

• Max Solar Charging Current: 100 A (120 A combined MPPT)

• Max AC/Generator Charge: 120 A

• Efficiency: > 86 % (inverter) / > 98 % (MPPT)

• Operating Temp: –4 °F to 140 °F (–20 °C to 60 °C)

• Dimensions (H × W × D): 28 × 16 × 10 in (≈ 710 × 400 × 255 mm)

• Weight: 135 lb (61 kg)

• Certifications: UL 1741, FCC Part 15, CE, RoHS

Included: (1) communication cable.
Optional: Growatt WiFi/GPRS dongle for remote monitoring.

Step up to reliable, utility-grade off-grid power with the Growatt SPF 12000KT DVM-US. Contact our solar specialists for system design help or bulk pricing, and start powering everything—anywhere.

Specs: Download

Manual: Download

Certification: Download
