90KW Solar Battery EVO Grizzly Commercial 3-Phase Energy Storage Cabinet 207kWh Battery + 66K Inverter + 90KW Solar Array
SKU: 15190-GRIZB207
Vendor: Ozark Mountain Offgrid
Guaranteed Safe Checkout
Cantidad mínima de pedido (MOQ): Para garantizar el éxito de nuestra misión de revolucionar el acceso a la energía solar en el Caribe, hemos implementado una política de cantidad mínima de pedido. Para pedidos mayores que nuestro tamaño promedio de pedido, la cantidad mínima de pedido para paneles individuales es de 5 unidades, además de los costos de envío.
Share
Introducing the BatteryEVO GRIZZLY Energy Storage System Cabinet, a UL-listed, industrial-grade power solution designed for installation in electrical rooms within commercial buildings.
This robust system is expertly engineered to offer a comprehensive energy management solution for demanding industrial applications. With its high-capacity 207 kWh storage and a powerful 66k inverter, the GRIZZLY System ensures seamless power supply, supporting heavy machinery and critical industrial operations. Its advanced LFP battery technology and 480V AC compatibility make it a standout choice for enhancing energy efficiency and reliability in large-scale settings.
Built to endure, the AC480V/207kWh GRIZZLY Battery is designed for a reliable service life of over 10 years, contingent upon operational conditions. It integrates smoothly into existing electrical systems, providing an all-in-one solution that simplifies installation and reduces setup times.
The GRIZZLY System is exceptionally versatile, supporting a variety of power configurations including 3P3W+PE setups. It excels in environments without solar power but can also integrate with grid-tied and DC solar systems, thanks to its high voltage MPPT range. It’s equipped with Wi-Fi and network connectivity, enabling remote monitoring and management. Features like the programmable charge/discharge scheduler enhance operational control, while its substantial weight and size reflect its capacity and durability.

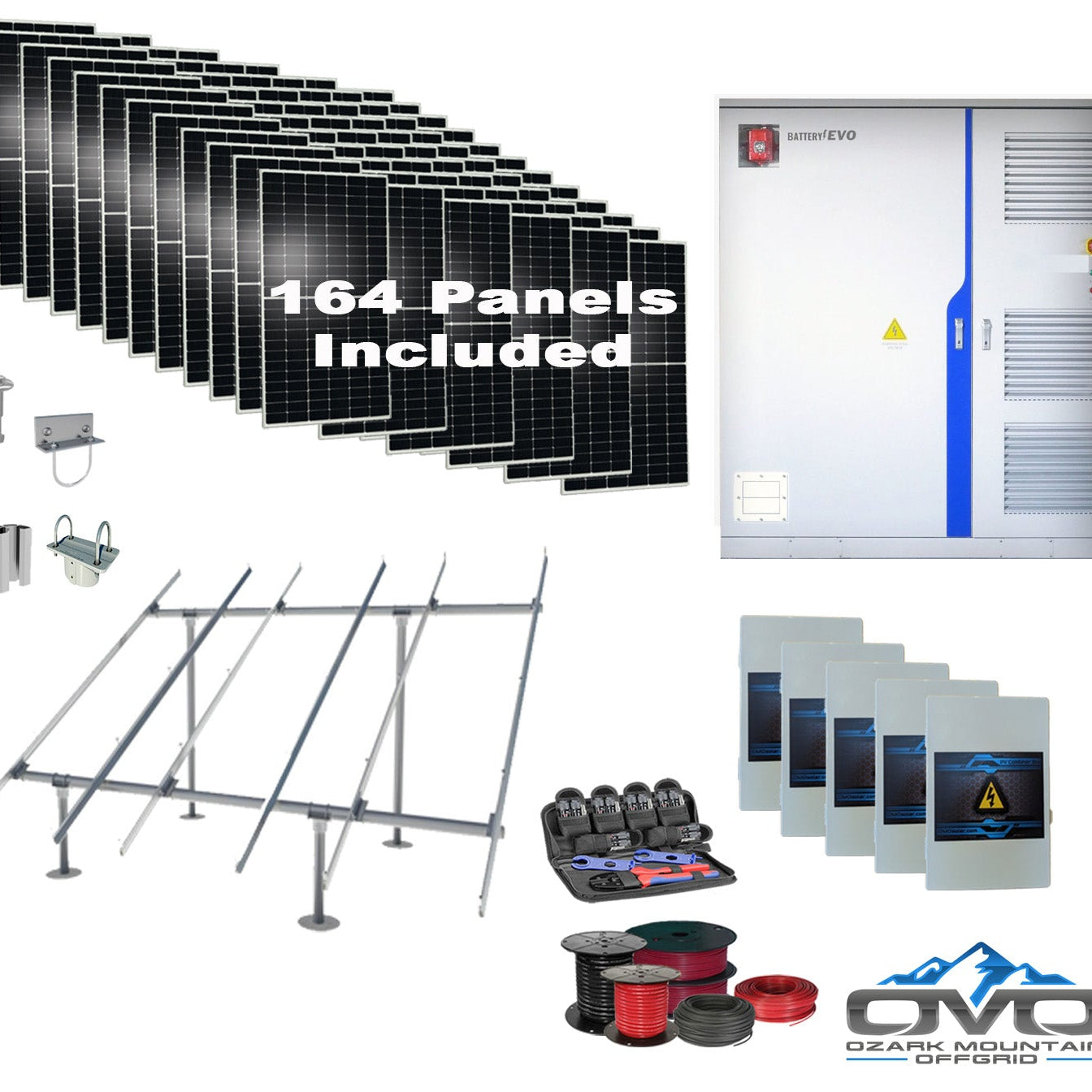

Includes
164x 550W Bifacial Mono Solar Panels (90200 Watt Array)
1x Complete Battery EVO Grizzly Energy Storage Cabinet 207kWh Battery + 66K Inverter with Built-in Fire Suppression.
1x Complete Set of Iron Ridge GROUND Mount Rails / Top Caps/ Rail Connectors / Fasteners and Bolts
5x Solar PV Combiner Box
2x 500' Spool 10AWG MC4 Solar Array Cabling
2x Spool 100' AC Output / Input / Generator Cabling - 6 AWG
2x 20' Spool 2/0 AC Main Line
1x MC4 Crimper Tool Set
Features
- Suitable for grid-tied and off-grid applications with high voltage solar input.
- Wired connections to support stable and high-capacity power flow.
- Dual MPPT controllers to maximize solar energy utilization.
- 480V AC outlets for direct industrial use.
- Wheels for mobility within the installation site, eliminating the need for permanent wall mounting.
- Expandable setup by connecting multiple GRIZZLY units for increased capacity.
- Manufactured in the USA with a 10-year warranty, ensuring long-term reliability and industry-leading customer support.
What Can Grizzly Do?
The Grizzly is an all-in-one rugged energy storage system designed to power medium to large industrial, agricultural, and commercial properties.
Energy Efficiency Improved
Energy consumption can be detected, managed and adjusted by using Grizzly EMS with application.
Emergency Battery Backup
In case of power outages the Grizzly ESS system will kick in to keep your entire building powered.
Off-Grid Power
The Grizzly ESS system is powerful enough to reliably take any home off-grid.
Technical Specifications
| SKU: | EVO-GRZL-60207-648 |
| System Voltage: | AC480V |
| Nominal Voltage: | 691.2V |
| Chemistry: | LFP |
| kWh Capacity: | 207kWh |
| Ah Capacity: | 300Ah |
| Charging Voltage: | 700V - 830V |
| Max Charge Voltage: | 831.6V |
| Operating Voltage Range: | 604.8V - 750V |
| Suggested Low Voltage Cutoff: | 604.8V - 685.8V |
| Cell Configuration: | 216S1P |
| Max Continuous Discharge Current: | 125A |
| Max Continuous Power: | 66kVA |
| Max Charge Current: | 32.5*2 A(MPPT) |
| Charge Temperature Range: | 0°C (32°F) / 55°C (131°F) |
| Discharge Temperature Range: | -10°C (14°F) / 55°C (131°F) |
| Optimal Discharge Temperature Range: | 15°C (59°F) / 35°C (95°F) |
| Storage Temperature Range: | -5°C (23°F) / 35°C (95°F) (Max 6 Months) |
| Weight: | 6614lbs (3000kg) |
| Depth: | 72.83in (1850mm) |
| Width: | 57.09in (1450mm) |
| Height: | 84.65in (2150mm) |
| Safety Features: | Perfluorhexone fire protection & UL Listed & Battery Management System (Over/Under Voltage, Over Current, & Over/Under Temperature Protections) |
| Extended Solution: | Parallel Connection Available |
| Spec Sheet: | View |
Secure Payments for Your Journey Towards Solar Energy. Products You Can Trust.
Your solar investment deserves top-notch protection. We support you with industry-leading security measures to keep your transactions safe and sound. Shop with confidence knowing that your financial information is protected with advanced encryption and fraud prevention protocols. We take your financial security seriously, so you can focus on the bright future of solar energy.
Frequently Asked Questions
How do I know how much energy my house consumes?
There are two ways to obtain this information. The first would be to review the electricity bill you receive monthly. There you can get an idea of how much your consumption is in kilowatts. The second option would be to hire an electrician to come to your home and carry out a load census.
How many hours can the battery supply power?
That will depend on your use and the amount of battery storage, as well as your technology. To give an example: a 12 volt, 250 amp battery contains 3,000 watts. That means you have 3,000 watts to be able to consume up to what the battery specifications allow (it is not recommended to use batteries at their maximum capacity).
How do I know what type of system I need?
This is different for each person, as you must determine what you want a solar system for. Do you want it to power your entire home or run certain appliances in case of an emergency or power outage? Based on that answer, the type of system you need will be determined.
Can I continue adding panels to my system?
This will depend on the technical specifications of your inverter and batteries since each system has its limitations. All solar panel installations must comply with limits on connections, otherwise it may cause the system to explode or burn out. Also taking into account physical limitations such as the dimensions of the roof and size of the solar panels, among many other things.
How many discharge cycles does the battery have? What type of battery is it?
The one we currently have contains 1,200 discharge cycles. It is an AGM battery, which means it requires no maintenance.
What is the best type of solar panels?
There are many brands, models and types of solar panels. Generally speaking, monocrystalline and class A panels are the best solar panels. Additionally, having a bifacial panel captures a greater amount of light.
Are used solar panels worth it?
If they are in good condition, yes, since solar panels can produce energy for more than 25 years. Which means that a panel with a few years of use would still work well.
What are mono and poly panels?
Monocrystalline panels are panels whose cells are made up of a single crystal and not many fragments as is the case of the polycrystalline panel. Many people debate which ones are better.
