175KW Complete Offgrid Solar Kit + 10x 15K Sol-Ark Inverter + 32kWh OMO 48V Freedom Series Lithium Battery +175.45KW Solar with Roof Mount and Wiring

$293,217.10

Product Type: Complete Kits Without Batteries
SKU: 151175-BFRE1R-1
Weight: 2000.0 lb
Vendor: Ozark Mountain Offgrid

Unfortunately pickup is currently unavailable

Or contact our sales department and we will try to help you

Guaranteed Safe Checkout

Cantidad mínima de pedido (MOQ): Para garantizar el éxito de nuestra misión de revolucionar el acceso a la energía solar en el Caribe, hemos implementado una política de cantidad mínima de pedido. Para pedidos mayores que nuestro tamaño promedio de pedido, la cantidad mínima de pedido para paneles individuales es de 5 unidades, además de los costos de envío.

Description

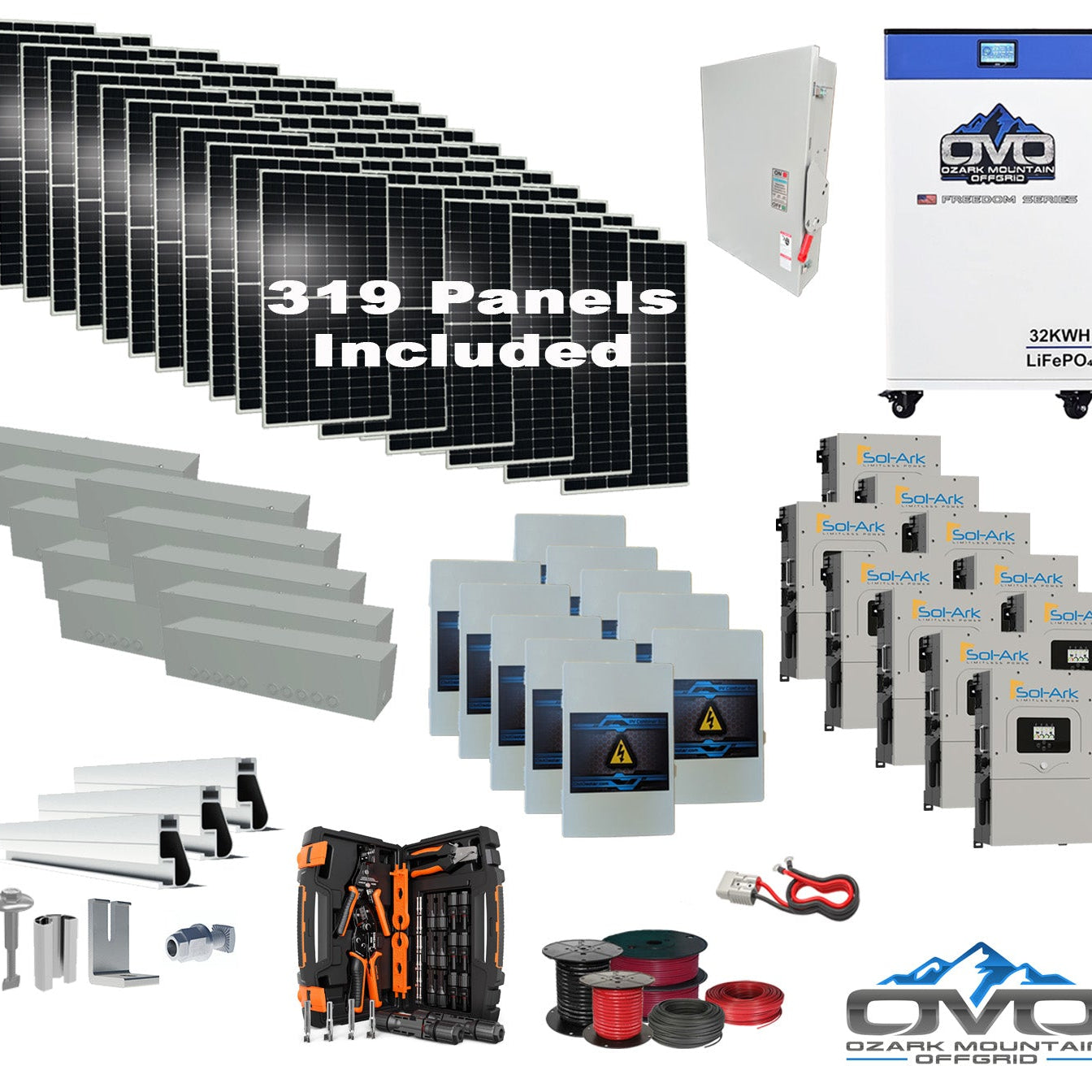

175KW Complete Offgrid Solar Kit + 10x 15K Sol-Ark Inverter + 32kWh OMO 48V Freedom Series Lithium Battery +175.45KW Solar with Roof Mount and Wiring

This Package is a great package for a Complete Offgrid Home. The Solar Array will produce around 789525Watts per day based on 4.5 hours sun. This size of system generally works great for large sized homes / Farms, and etc that use around 23685kWh per month. This system is built to be scaled up for future additions of Panels or Batteries.

This Lithium Battery Bank is rated for 32KW of storage power.

319x 550W Bifacial Mono Solar Panels (175450 Watt Array)
10x Sol-Ark Hybird/Offgrid All in ONE Inverter 15k 48V (Included MPPT Charge Controller built in)
1x OMO 32KW 48V Freedom Series Heated Battery with Bluetooth and LCD Readout
1x Complete Set of Iron Ridge ROOF Mount Rails / Splices/L-Feet / Fasteners and Bolts
10x Solar PV Combiner Box
3x 500' Spool 10AWG MC4 Solar Array Cabling
1x MC4 Crimper Tool Set
3x Spool 100' AC Output / Input / Generator Cabling - 6 AWG
3x 20' Spool 2/0 AC Main Line
10x Wire Gutter Boxes
1x AC Combiner Box Kit (2x or more Sol-ark Combination kit)
1x Anderson Plug Battery Cable Set for Inverter / Battery Connection
1x Installation Manual

Battery Specification Sheet

These Solar Panels are BiFacial with Double Glass. Bifacial technology enables additional energy harvesting from rear of panel (up to 25% more). These will produce more power output in weak light conditions, such as cloudy, hazy or early morning conditions. These panels offer High Wind and snow resistance loads as well. 5400 PA Snow Load / 2400 PA Wind Load. They have a 30 Year Power Warranty

Sol-Ark 15K Inverter Specs
Output - 120/240 Split Phase
Can be used With or Without Batteries
48V Battery Backup Input (Flood Lead Acid Or Lithium)
Grid Tie Or Offgrid
Built in MPPT Charge Controller - 3x MPPT Inputs
Generator Support
LCD Touch Screen
WIFI Connectivity
DC Transformerless
Inverter Efficiency 97.5%
NEMA 3R Rated - (Outdoor use approved)
10 Year Warranty

Parallel Stacking up to 8 units
4MS Transfer time from Batteries to Grid Power

Secure Payments for Your Journey Towards Solar Energy. Products You Can Trust.

Your solar investment deserves top-notch protection. We support you with industry-leading security measures to keep your transactions safe and sound. Shop with confidence knowing that your financial information is protected with advanced encryption and fraud prevention protocols. We take your financial security seriously, so you can focus on the bright future of solar energy.

Frequently Asked Questions

How do I know how much energy my house consumes?

  • Category:
  • Energy

There are two ways to obtain this information. The first would be to review the electricity bill you receive monthly. There you can get an idea of how much your consumption is in kilowatts. The second option would be to hire an electrician to come to your home and carry out a load census.

How many hours can the battery supply power?

  • Category:
  • Energy

That will depend on your use and the amount of battery storage, as well as your technology. To give an example: a 12 volt, 250 amp battery contains 3,000 watts. That means you have 3,000 watts to be able to consume up to what the battery specifications allow (it is not recommended to use batteries at their maximum capacity).

How do I know what type of system I need?

  • Category:
  • Usability

This is different for each person, as you must determine what you want a solar system for. Do you want it to power your entire home or run certain appliances in case of an emergency or power outage? Based on that answer, the type of system you need will be determined.

Can I continue adding panels to my system?

  • Category:
  • Usability

This will depend on the technical specifications of your inverter and batteries since each system has its limitations. All solar panel installations must comply with limits on connections, otherwise it may cause the system to explode or burn out. Also taking into account physical limitations such as the dimensions of the roof and size of the solar panels, among many other things.

How many discharge cycles does the battery have? What type of battery is it?

  • Category:
  • Usability

The one we currently have contains 1,200 discharge cycles. It is an AGM battery, which means it requires no maintenance.

What is the best type of solar panels?

  • Category:
  • Recommendations

There are many brands, models and types of solar panels. Generally speaking, monocrystalline and class A panels are the best solar panels. Additionally, having a bifacial panel captures a greater amount of light.

Are used solar panels worth it?

  • Category:
  • Recommendations

If they are in good condition, yes, since solar panels can produce energy for more than 25 years. Which means that a panel with a few years of use would still work well.

What are mono and poly panels?

  • Category:
  • Features

Monocrystalline panels are panels whose cells are made up of a single crystal and not many fragments as is the case of the polycrystalline panel. Many people debate which ones are better.
