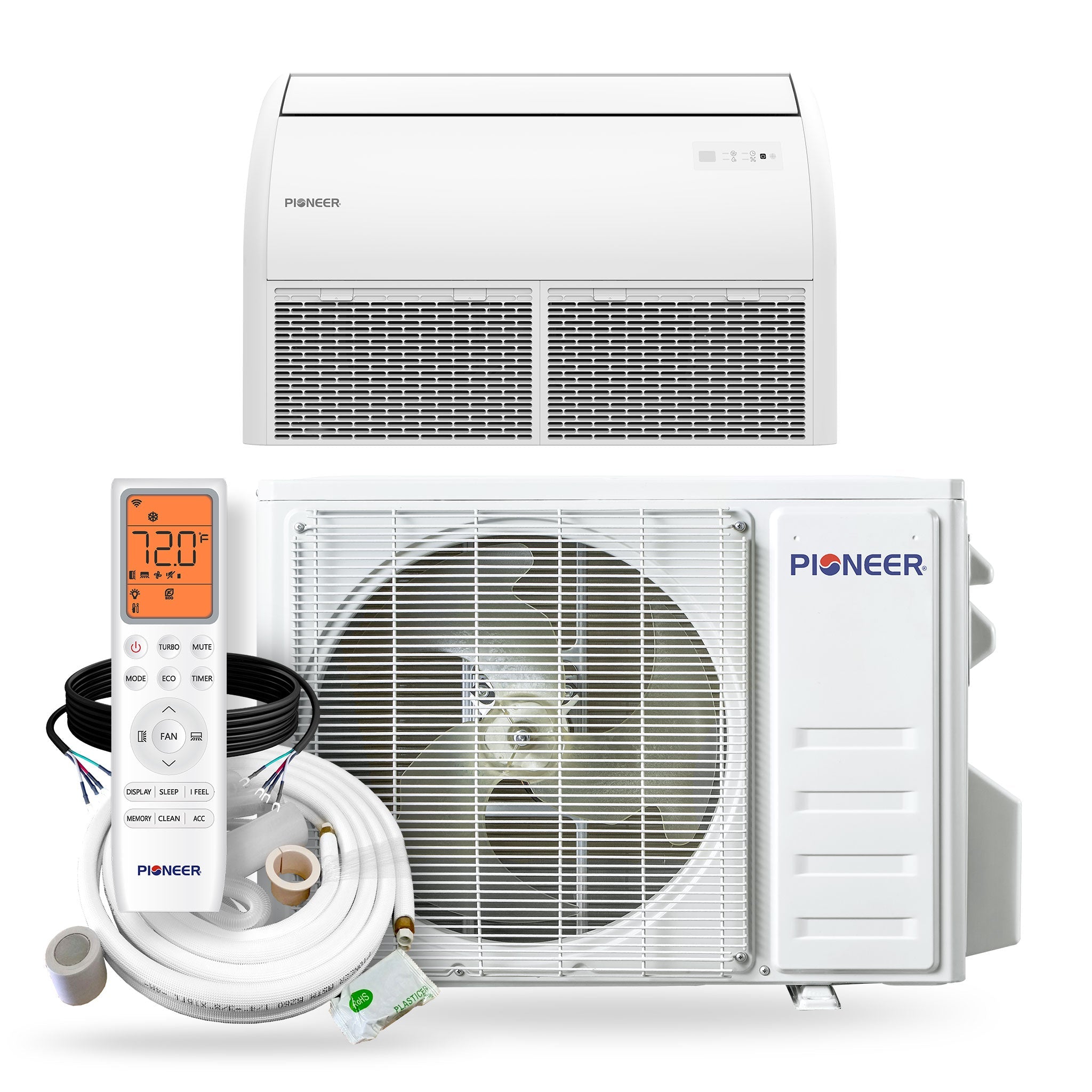

Pioneer® Quantum Ultra™ 24,000 BTU 20 SEER2 230V Floor/Ceiling/Low-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set

$2,088
$2,979.00

Product Type: UYT-24
SKU: UYT024GLSI24RL
Weight: 33.0 lb
Vendor: Pioneer Official Store

Guaranteed Safe Checkout

Cantidad mínima de pedido (MOQ): Para garantizar el éxito de nuestra misión de revolucionar el acceso a la energía solar en el Caribe, hemos implementado una política de cantidad mínima de pedido. Para pedidos mayores que nuestro tamaño promedio de pedido, la cantidad mínima de pedido para paneles individuales es de 5 unidades, además de los costos de envío.

Description

Summary

  • High Efficiency Quantum Ultra Floor/Ceiling/Low-Wall Ductless Split Heat Pump System
  • Cooling capacity: 22,200 BTU/H with 20.0 SEER2 / 11.7 EER2 efficiency
  • Heating capacity: 24,400 BTU/H with 9.5 HSPF2 / 3.0 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • Floor/Ceiling/Low-Wall Mounted Ductless Air Conditioning & Heating System
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R454b Refrigerant
  • Standard Ambient Range Operation (As low as 5°F in Heating / As high as 131°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers
  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

  • System Kit
    • Power Supply: 208~230V, 60Hz, 1Ph
    • Cooling Rated Capacity: 22,200 BTU/h
    • Cooling Capacity Range: 6,010~24,610 BTU/h
    • Cooling SEER2: 20.0 BTU/W.h
    • Cooling EER2: 11.7 BTU/W.h
    • Heating Rated Capacity: 24,400 BTU/h
    • Heating Capacity Range: 4,750~28,640 BTU/h
    • Heating HSPF2 (Region IV): 9.5 / 8.5 BTU/W.h
    • Heating C.O.P.2 (47°F/5°F): 3.0 / 2.0 W/W
    • Refrigerant Type: R454b
    • Suitable Area: 750~1,000 Sq.F
    • AHRI Reference: 217048767
  • Indoor Unit
    • Part Number: UT024GLSILSFHG
    • Air Flow (Turbo/Hi/Med/Lo/Mute): 647/588/517/470/412 CFM
    • Sound Level (Turbo/Hi/Med/Lo/Mute): 53/52/48/44/40 dB(A)
    • Product Dimensions (WDH): 41"-1/2 x 26"-1/2 x 9"-1/4 Inches
    • Carton Dimensions (WDH): 44"-1/2 x 26"-1/2 x 12" Inches
    • Net / Gross Weight: 57.3 / 68.3 lbs.
  • Outdoor Unit
    • Part Number: YN024GLSI24RPG
    • Breaker Needed: 20A (double-pole)
    • Sound Level: 54 dB(A)
    • Net Dimensions (WDH): 38"-1/2 x 16"-5/8 x 31"-5/8 Inches
    • Carton Dimensions (WDH): 40"-1/4 x 18"-7/8 x 31"-7/8 Inches
    • Net / Gross Weight: 104.7 / 119.0 lbs.

Dimension Chart

41½ 26½ 38½ 16⅝ 31⅝ ¾
